TUXEDO TP9KACX 9,000 LB 2-Post Clear Floor
TUXEDO TP9KACX 9,000 LB 2-Post Clear Floor
SKU: TP9KACX
- Regular price
- Price: $2,250.00
- Regular price
- List Price: $3,499.00
- Sale price
- Price: $2,250.00
- Unit price
- / per
Couldn't load pickup availability
Share

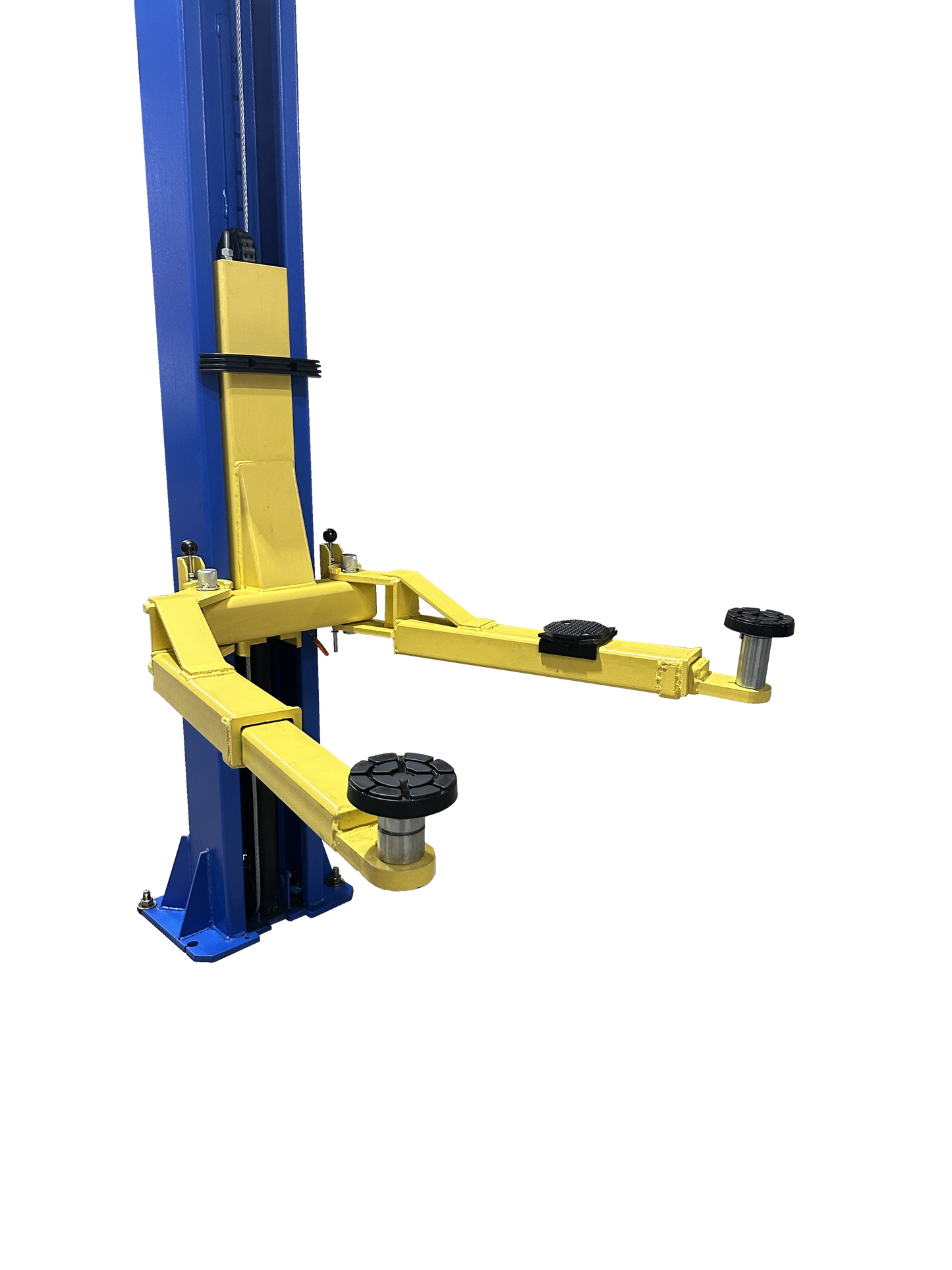

The Tuxedo TP9KACX is a professional-grade two-post clear floor vehicle lift with a 9,000 lb capacity, designed for efficient servicing of passenger cars, light trucks, and SUVs. Its asymmetric arm design provides optimal access to vehicle interiors, enhancing user convenience. Key features include rubber door guards, chain drive cylinders, a dual-point lock release system, and an auto arm restraint system, all contributing to operational safety and reliability.
The lift's single-piece column construction and internal hose routing ensure durability and a clean workspace. Additionally, low-profile spin-up lift pads and included stackable adapters offer versatility for various vehicle heights, making the TP9KACX a valuable addition to any automotive service facility.
- 9,000 lbs capacity
- ASymmetric Arms
- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- Auto Arm Restraint System

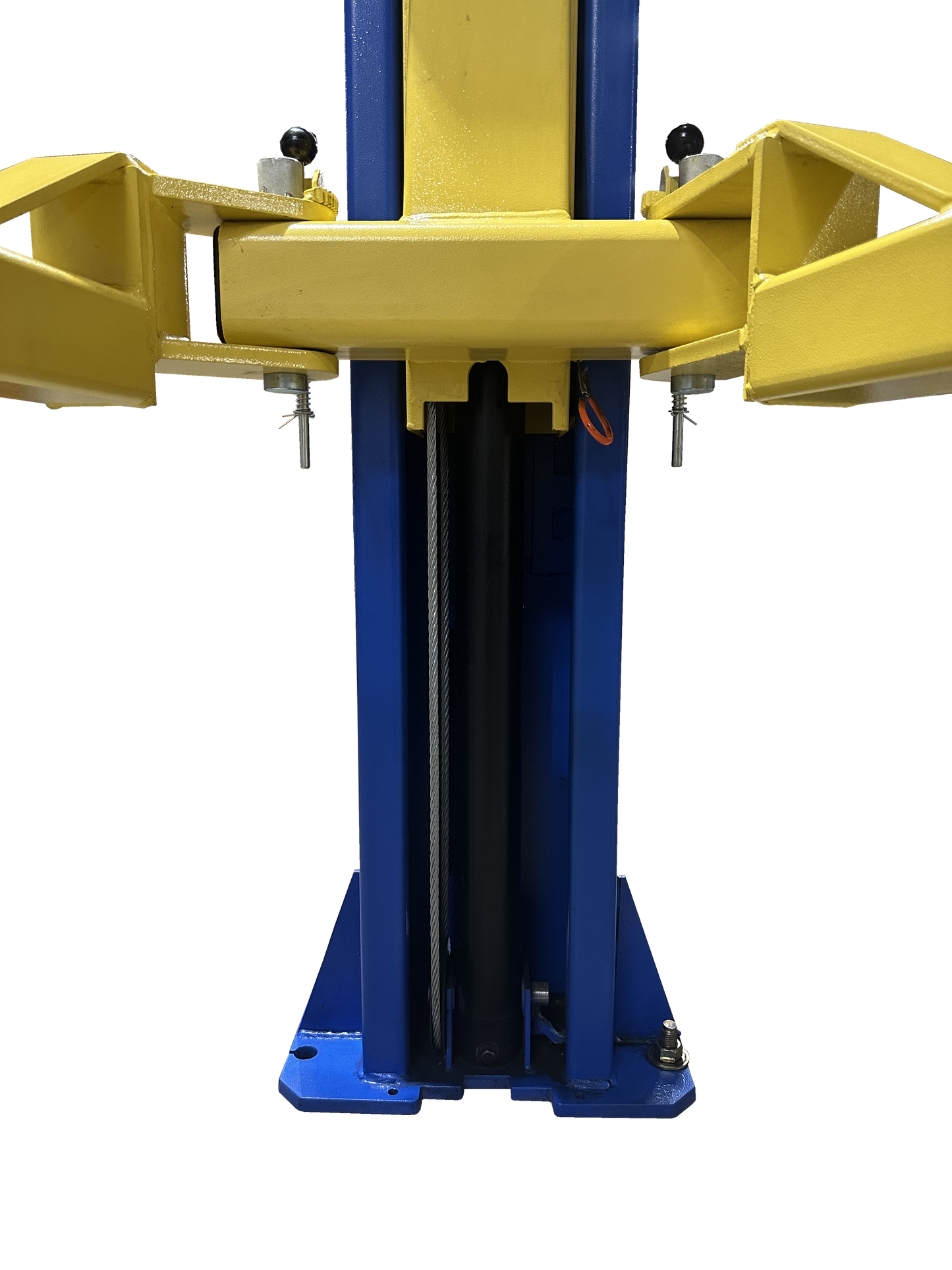

- Single Piece Column
- Internal Hose routing
- Low profile Spin Up Lift Pads
- Stackable Adapters Included
Specifications | |
---|---|
Capacity | 9,000 lbs |
Overall Height | 142-7/8″ |
Overall Width with Power Unit | 138″ |
Maximum Lift Height | 72″ |
Width Between Columns | 113-5/8″ |
Minimum Pad Height | 4″ |
Drive-Thru Clearance | 96″ |
Lifting Speed | 50 seconds |
Arm Type | Asymmetric |
Floor Type | Clear Floor |
Short Arm Reach (min/max) | 29″-41″ |
Long Arm Reach (min/max) | 37″-57″ |
Maximum Load Per Arm | 2,250 lbs |
Shipping Weight | 1,370 lbs |
Power Requirements | 220V – 20 AMP – 1 PH |
