TUXEDO TP11KC-DX 11,000 LB 2-Post Clear Floor
TUXEDO TP11KC-DX 11,000 LB 2-Post Clear Floor
SKU: TP11KC-DX
- Regular price
- Price: $3,450.00
- Regular price
- List Price: $4,549.00
- Sale price
- Price: $3,450.00
- Unit price
- / per
Couldn't load pickup availability
Share

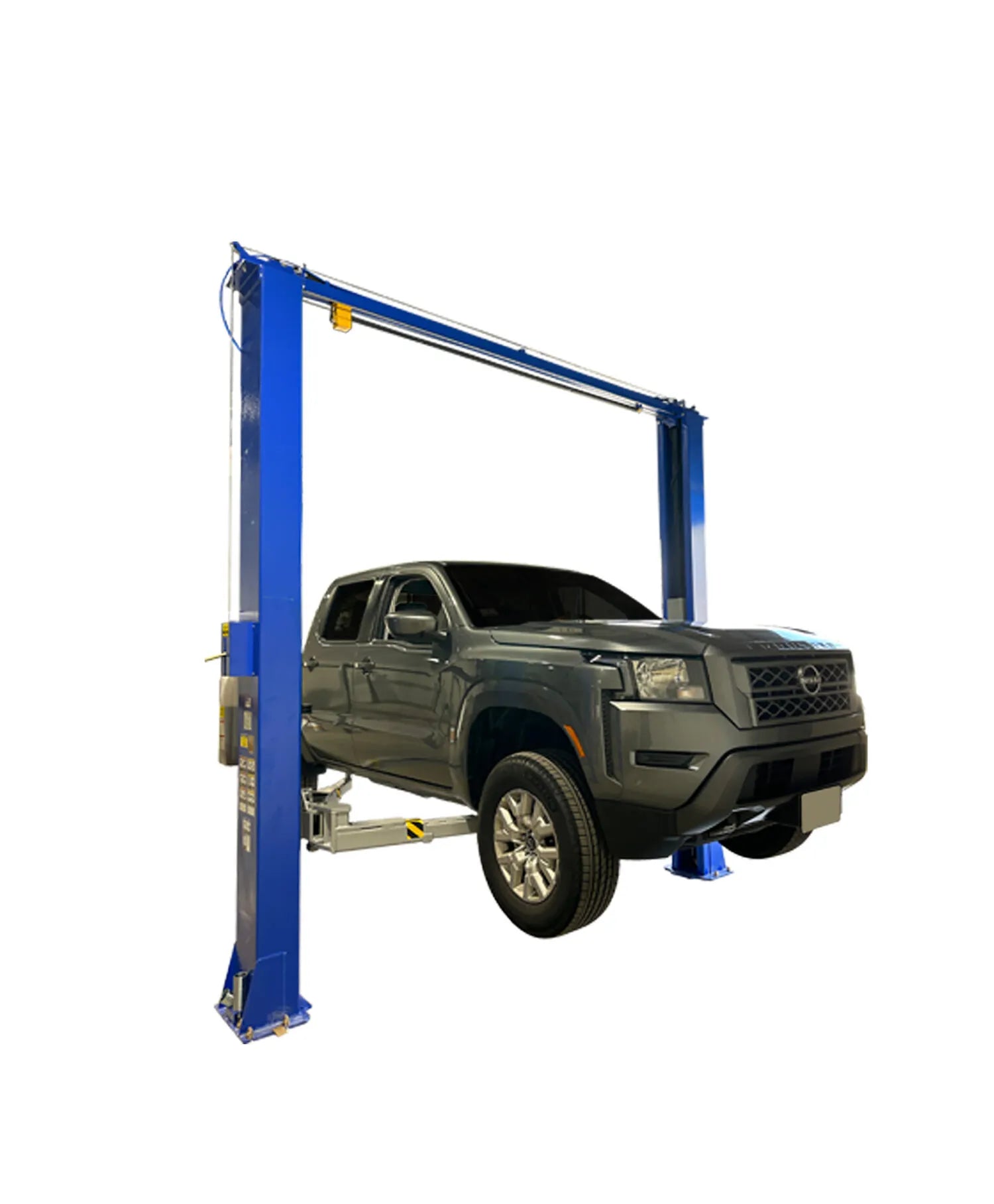

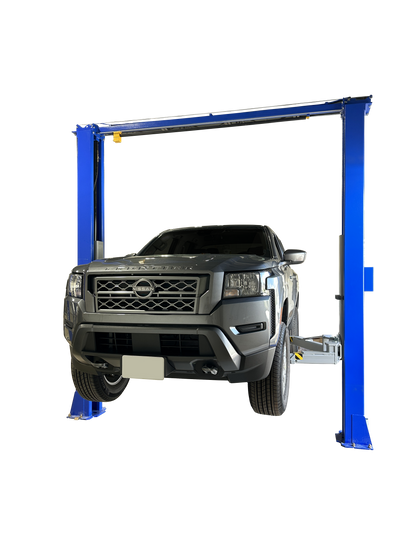

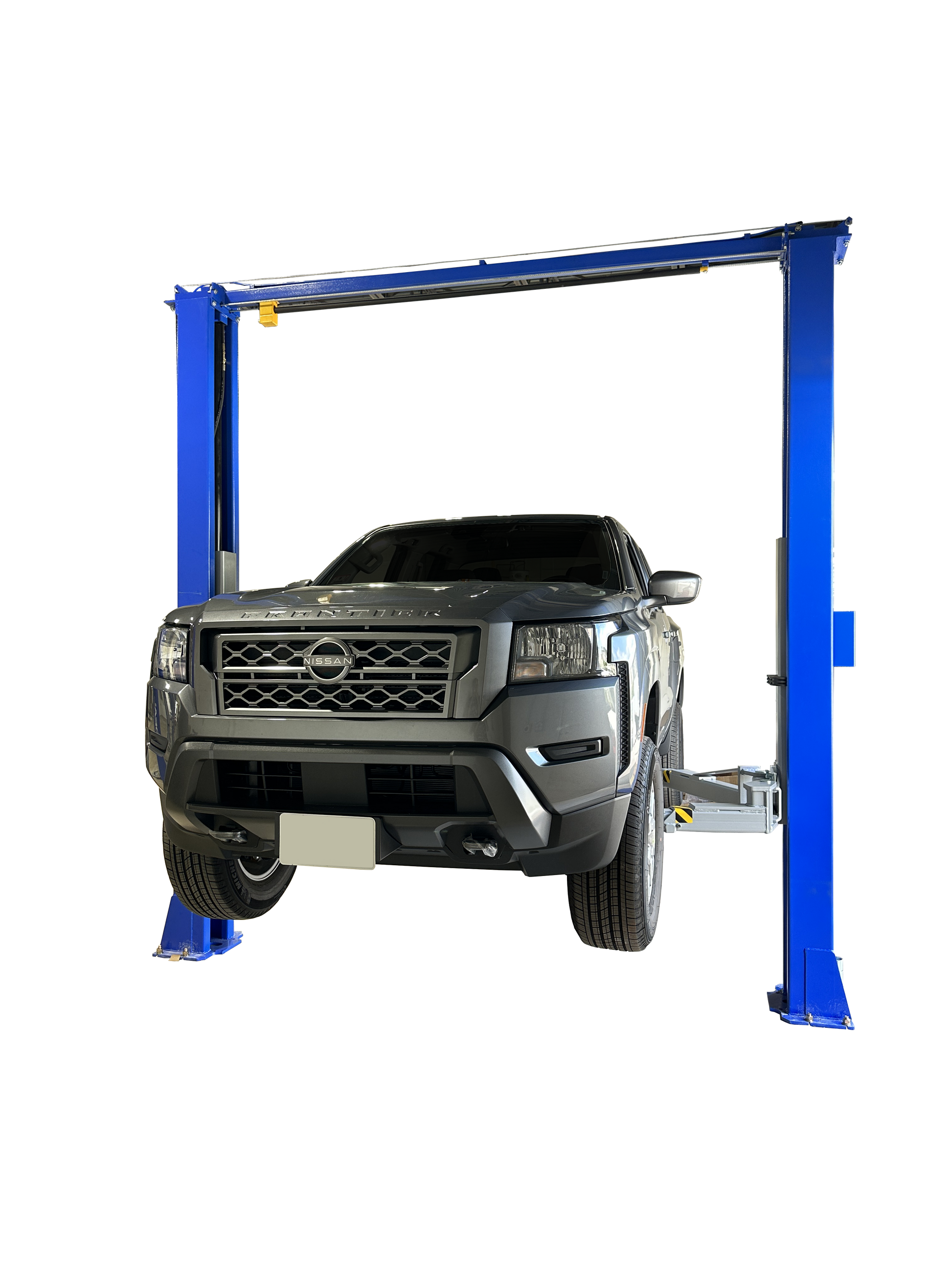

The Tuxedo TP11KC-DX is a robust two-post clear floor vehicle lift engineered for professional automotive service facilities. With an impressive lifting capacity of 11,000 lbs, it accommodates a wide range of vehicles, including larger trucks and SUVs. Its bi-symmetric arm design, featuring three-stage front arms, offers versatility in vehicle lifting points, ensuring both safety and convenience. The lift is equipped with direct drive pull cylinders and a single-point lock release system, enhancing operational efficiency and reliability.

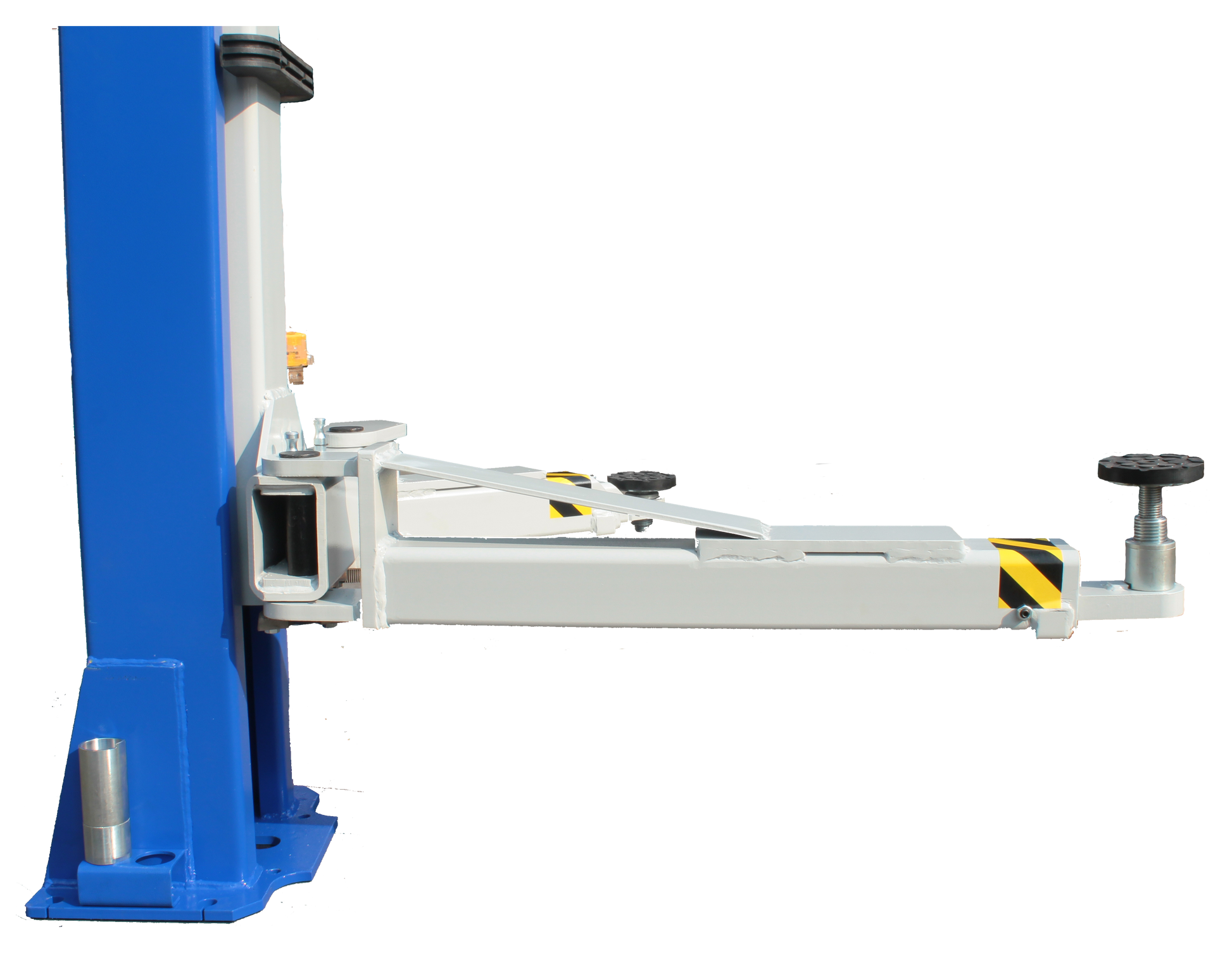

Additional features such as rubber door guards, spin-up low-profile lift pads, and included stackable adapters contribute to vehicle protection and adaptability for various vehicle heights. The single-piece column construction and external hose guards ensure durability and a clean workspace, making the TP11KC-DX a valuable addition to any automotive service facility.
- 11,000 lbs Capacity

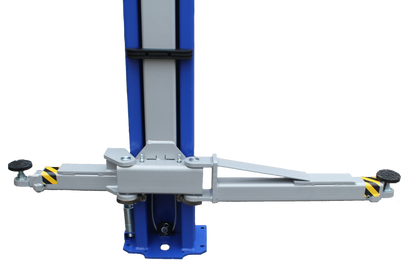

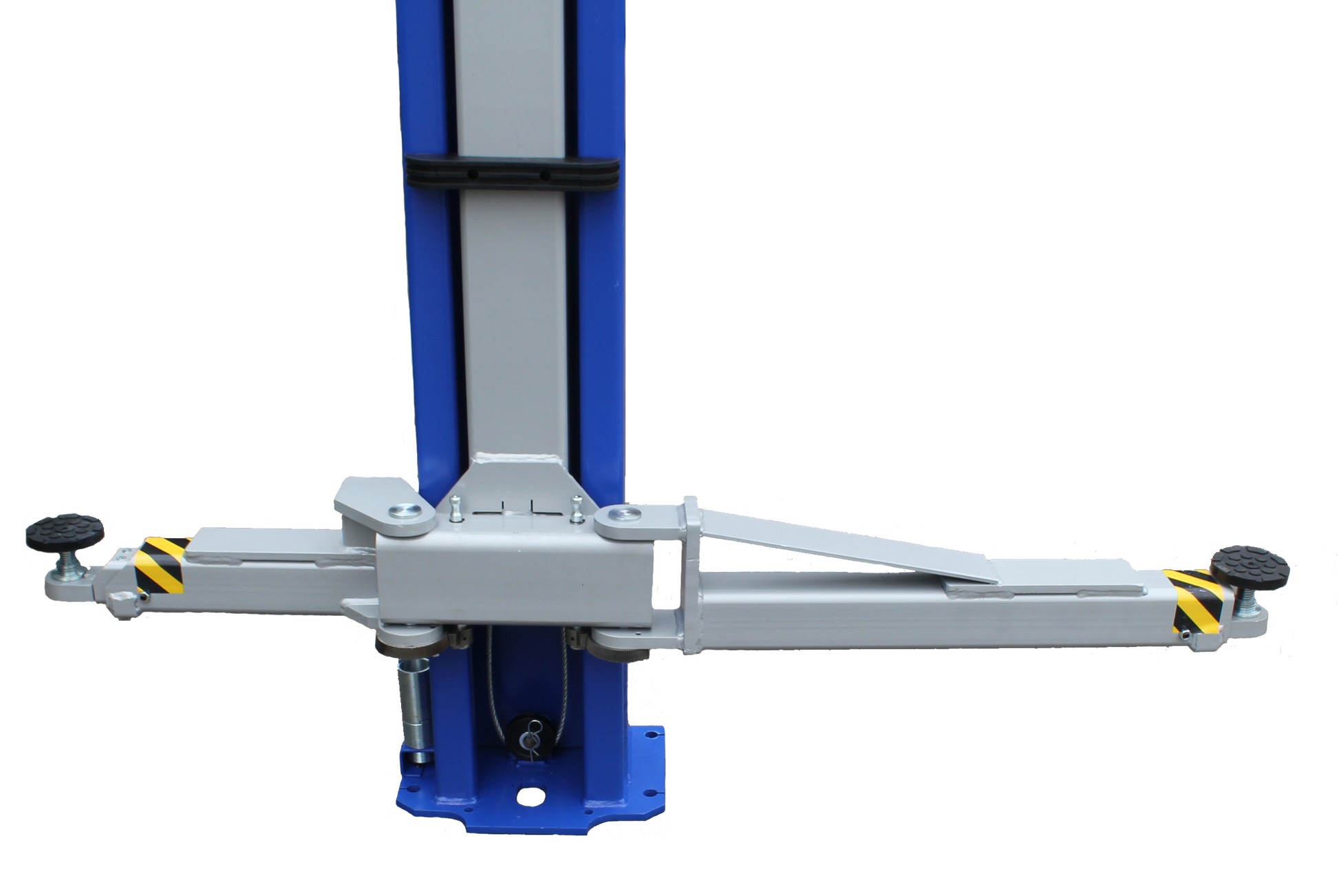

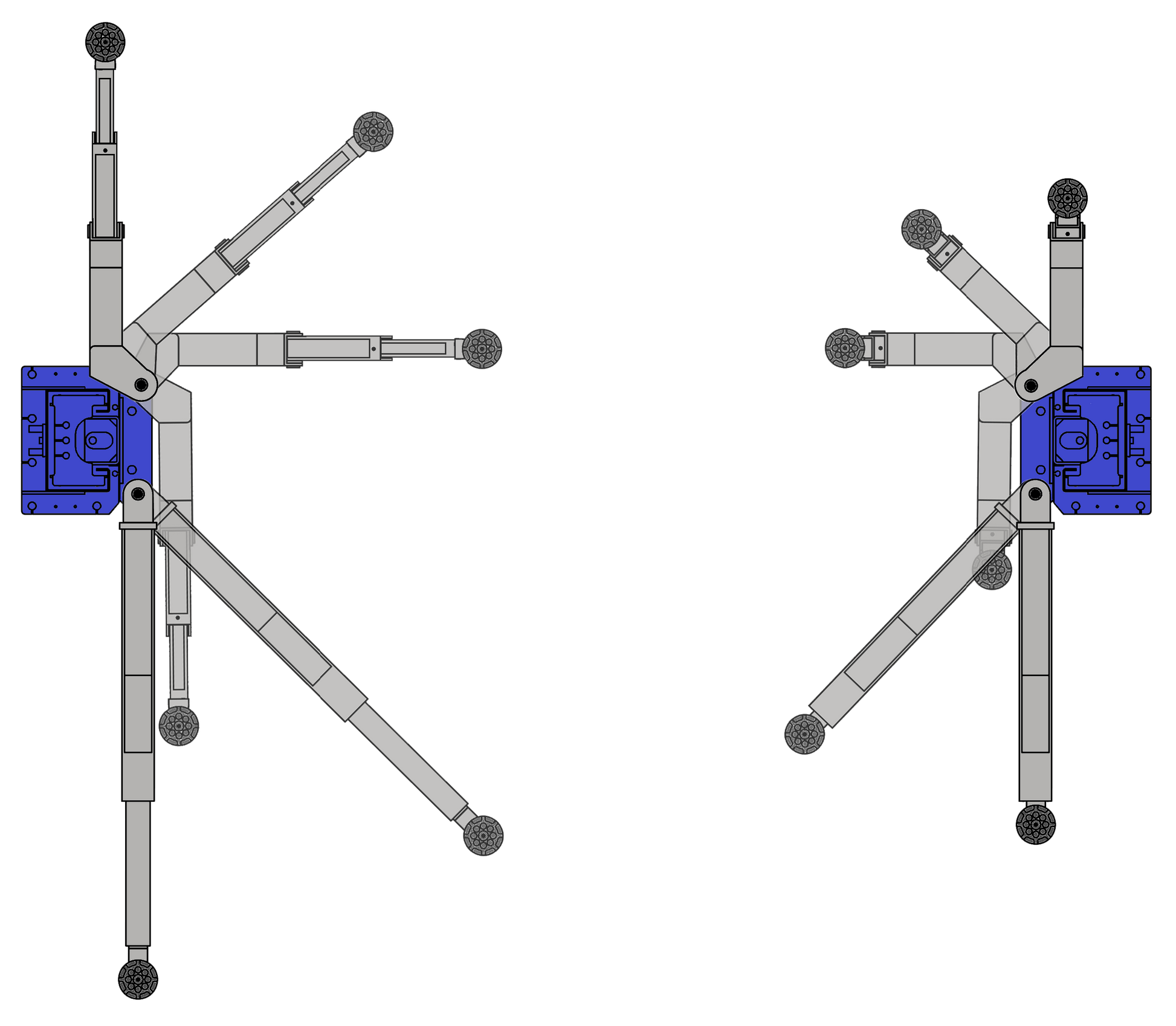

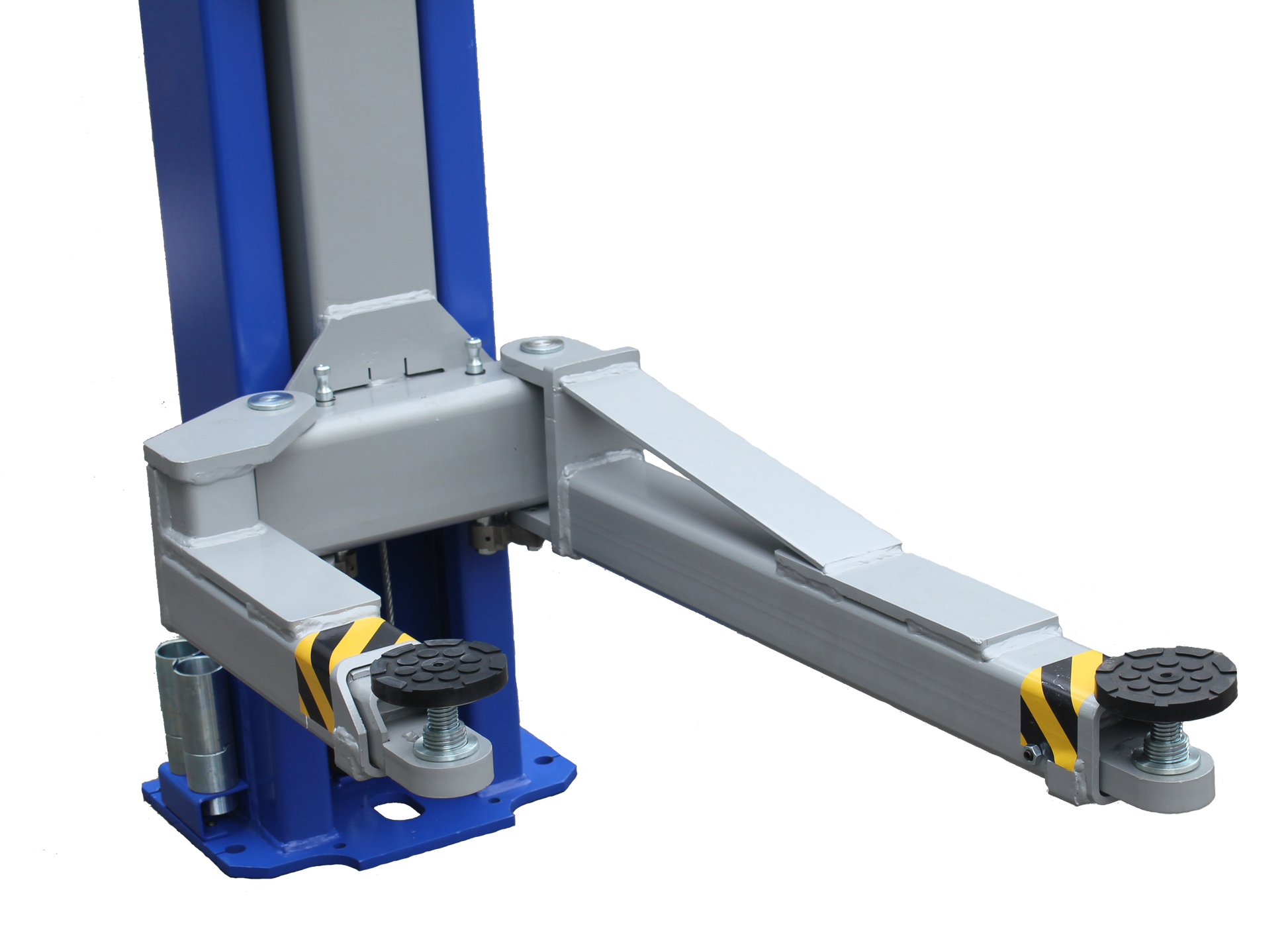

- Bi-Symmetric arm design

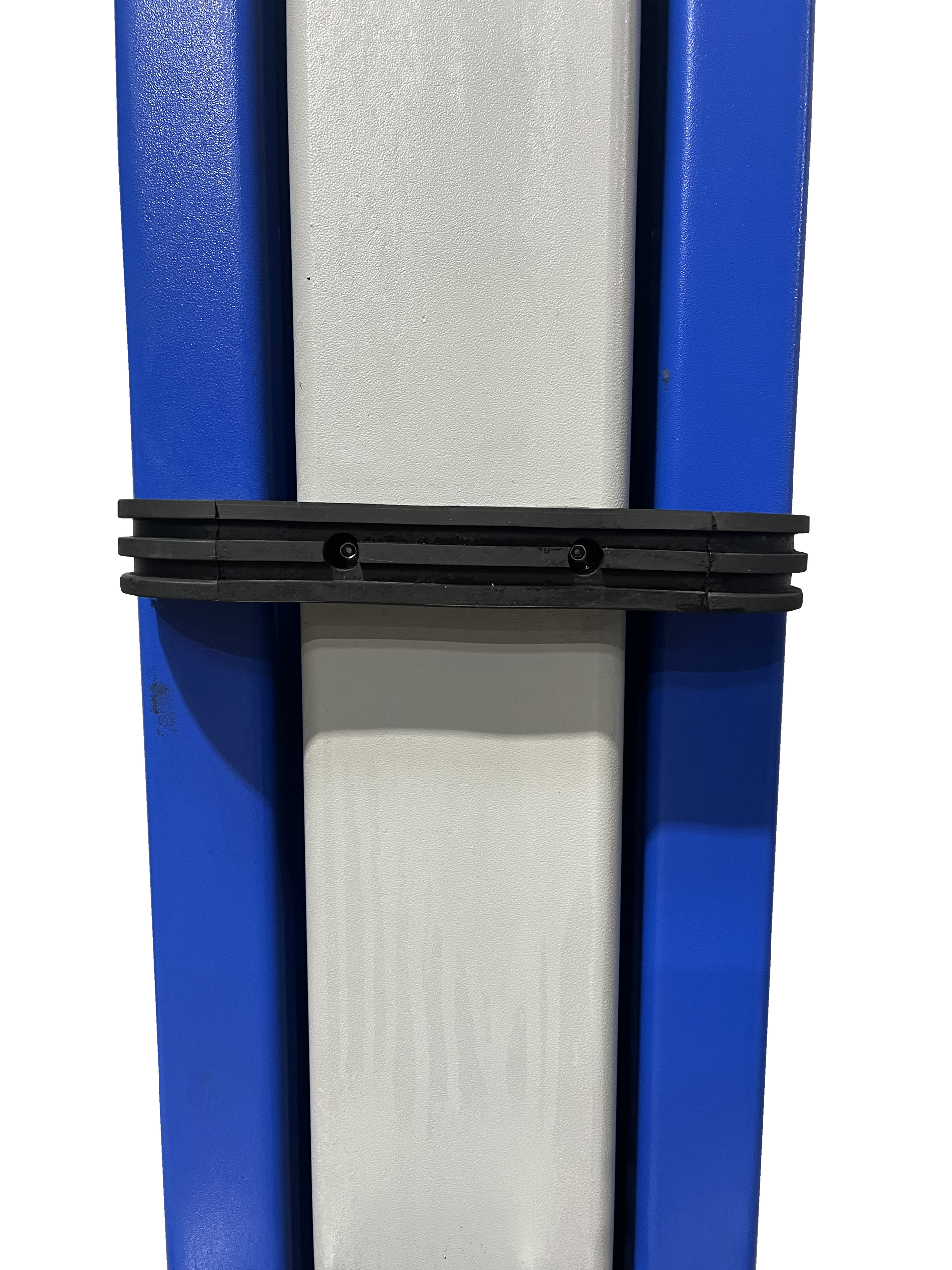

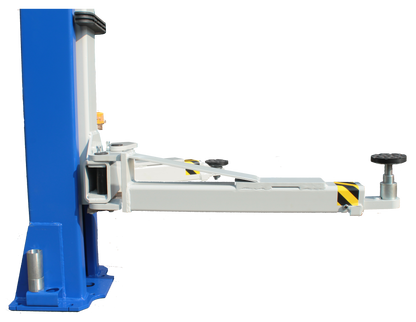

- Rubber Door Guards

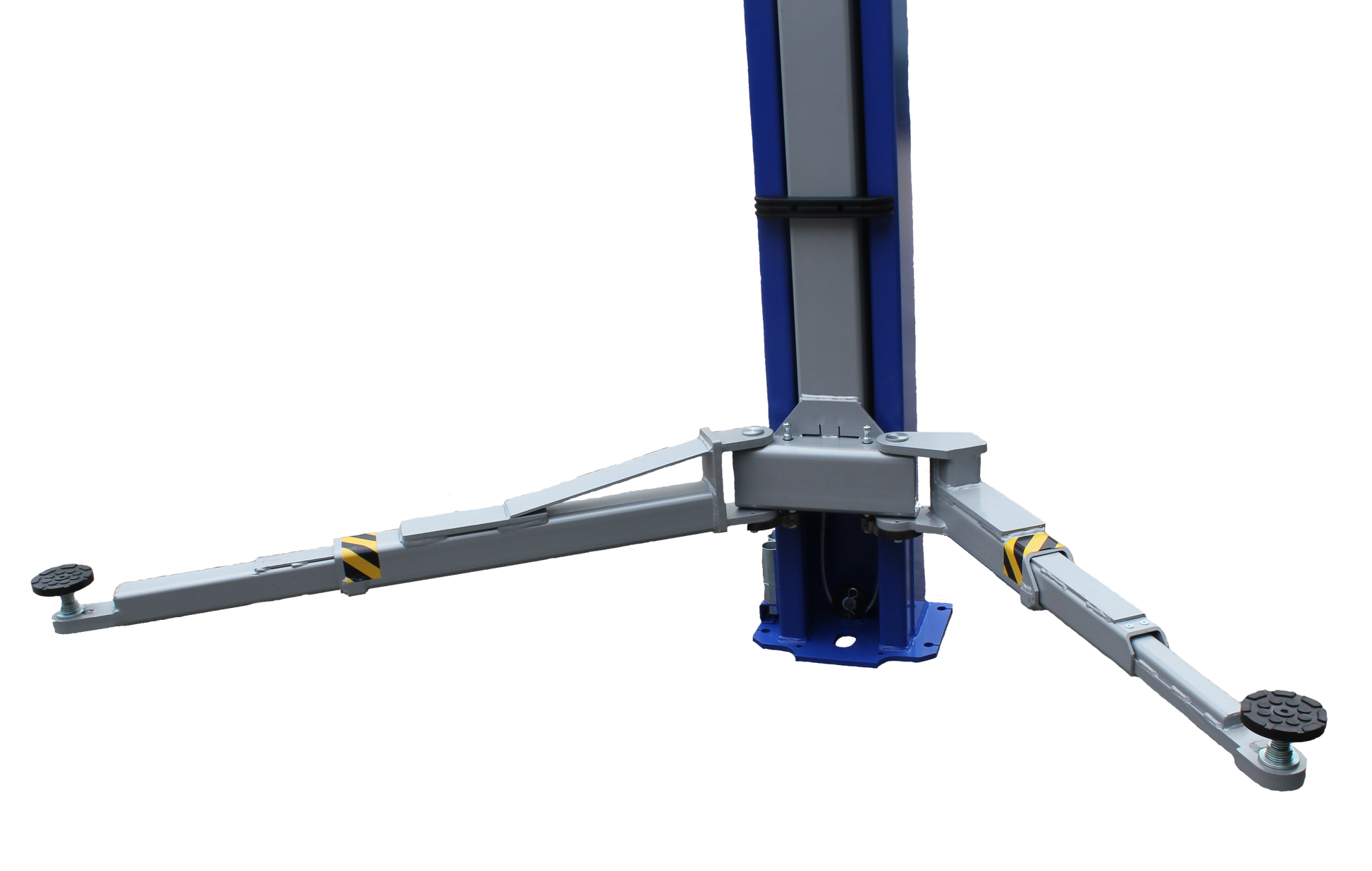

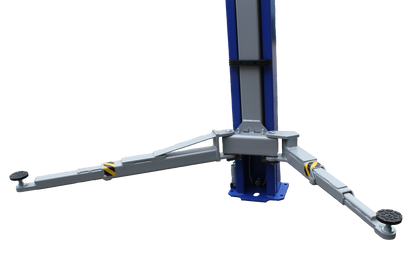

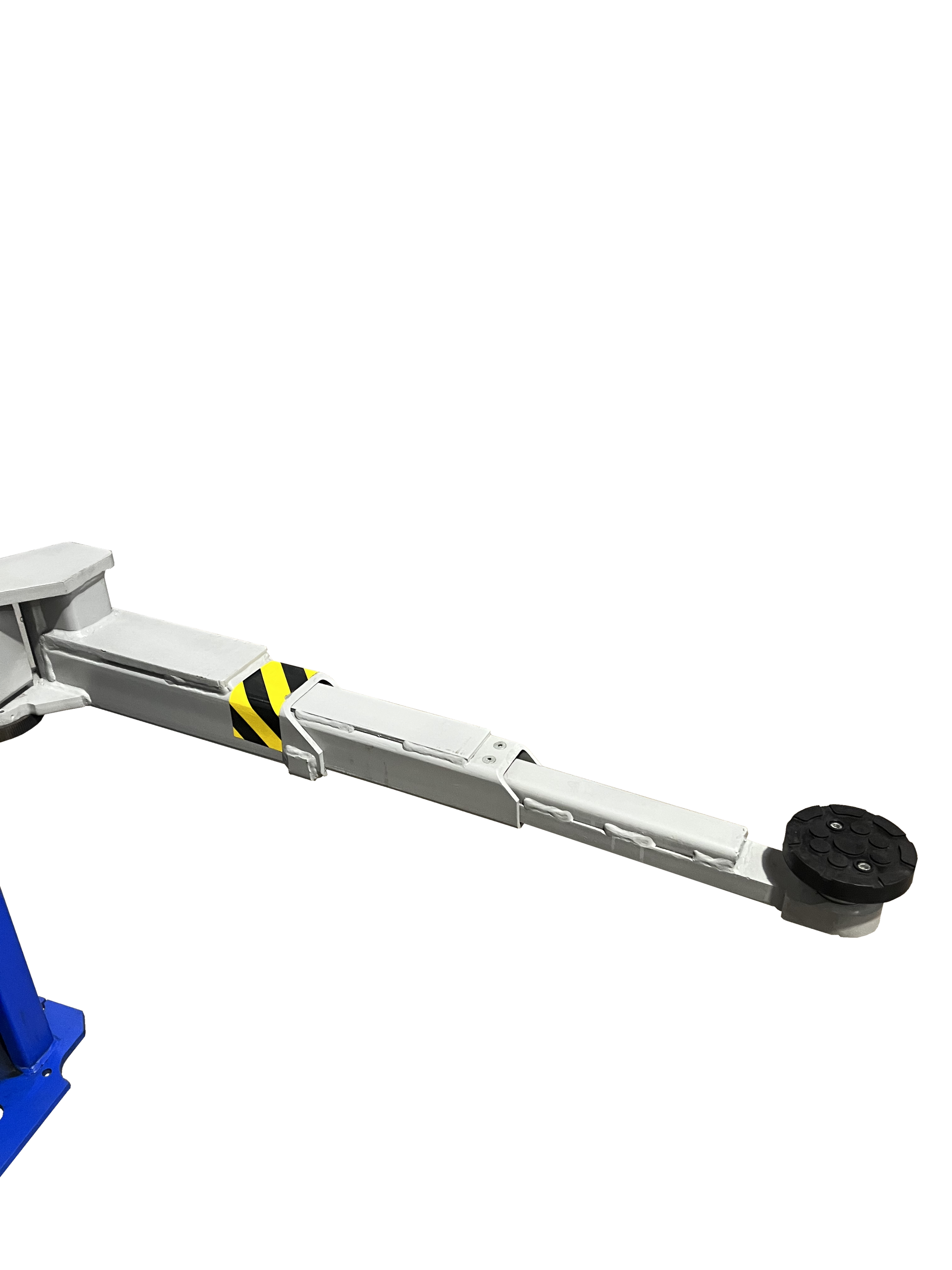

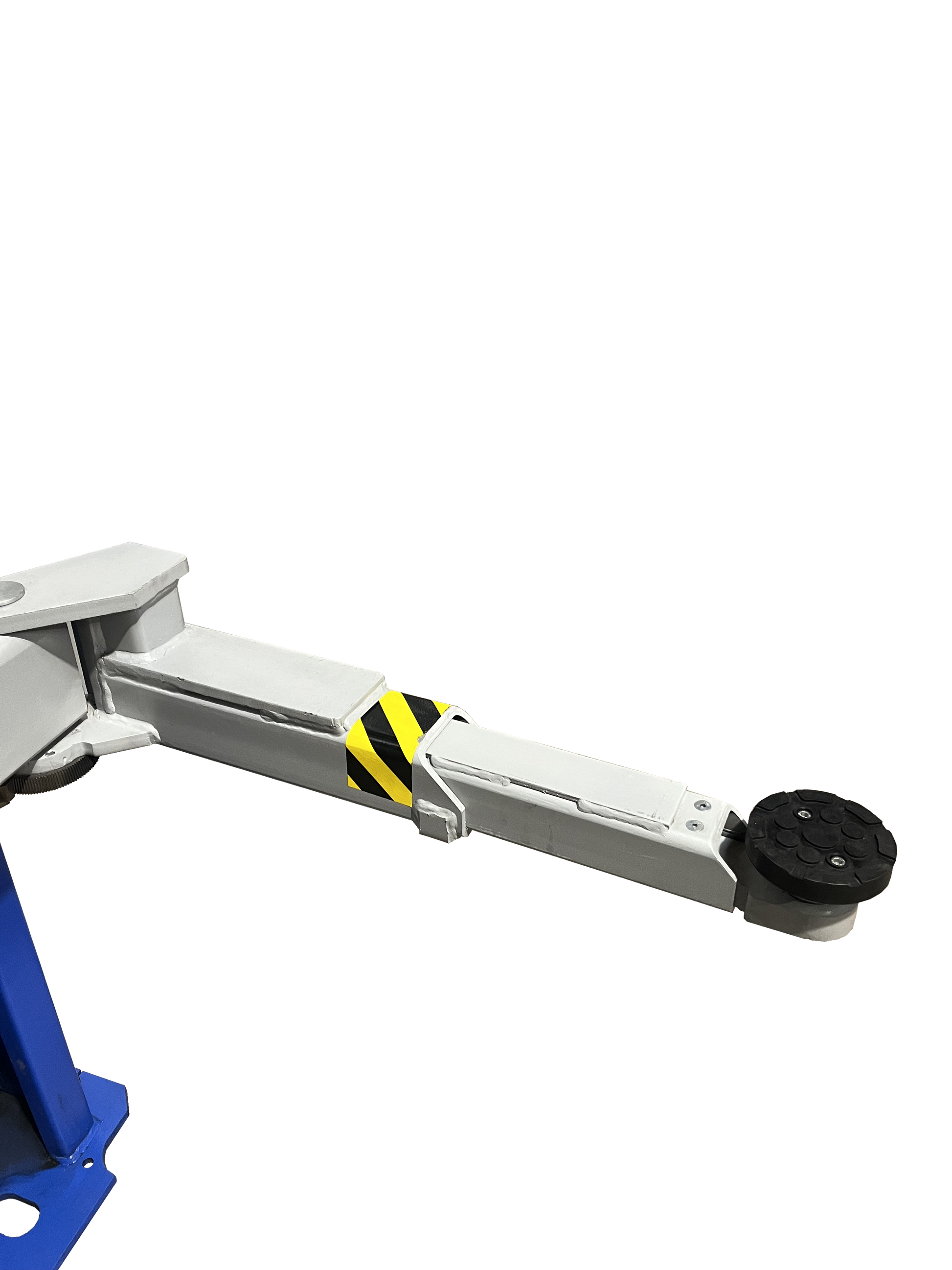

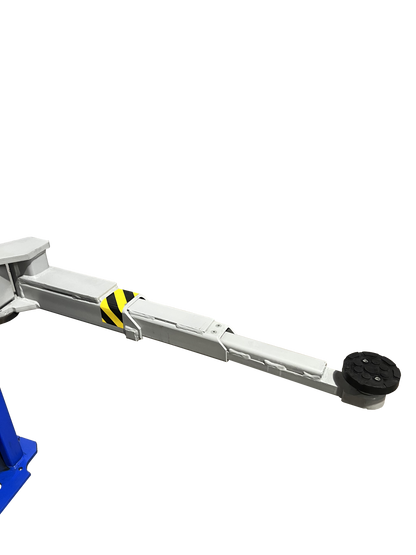

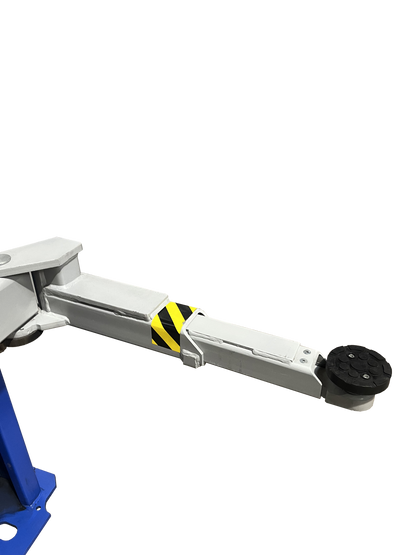

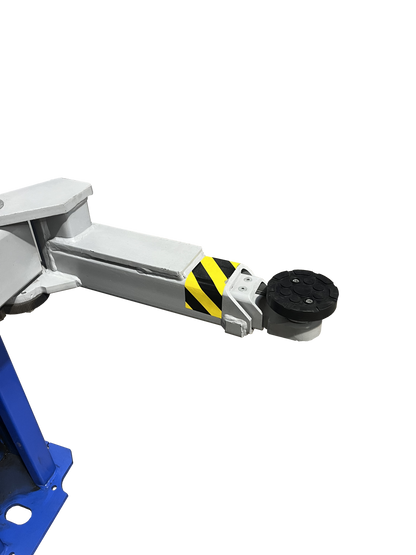

- 3 Stage Front Arms
- Single Piece Column

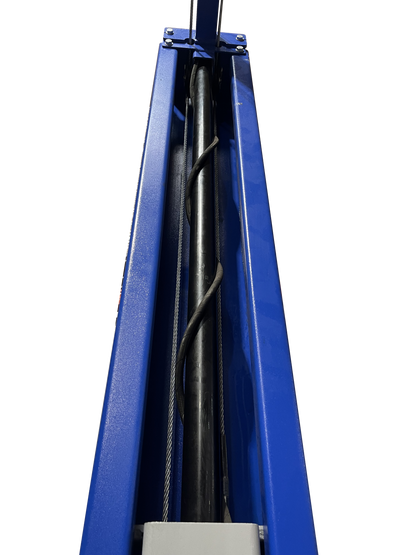

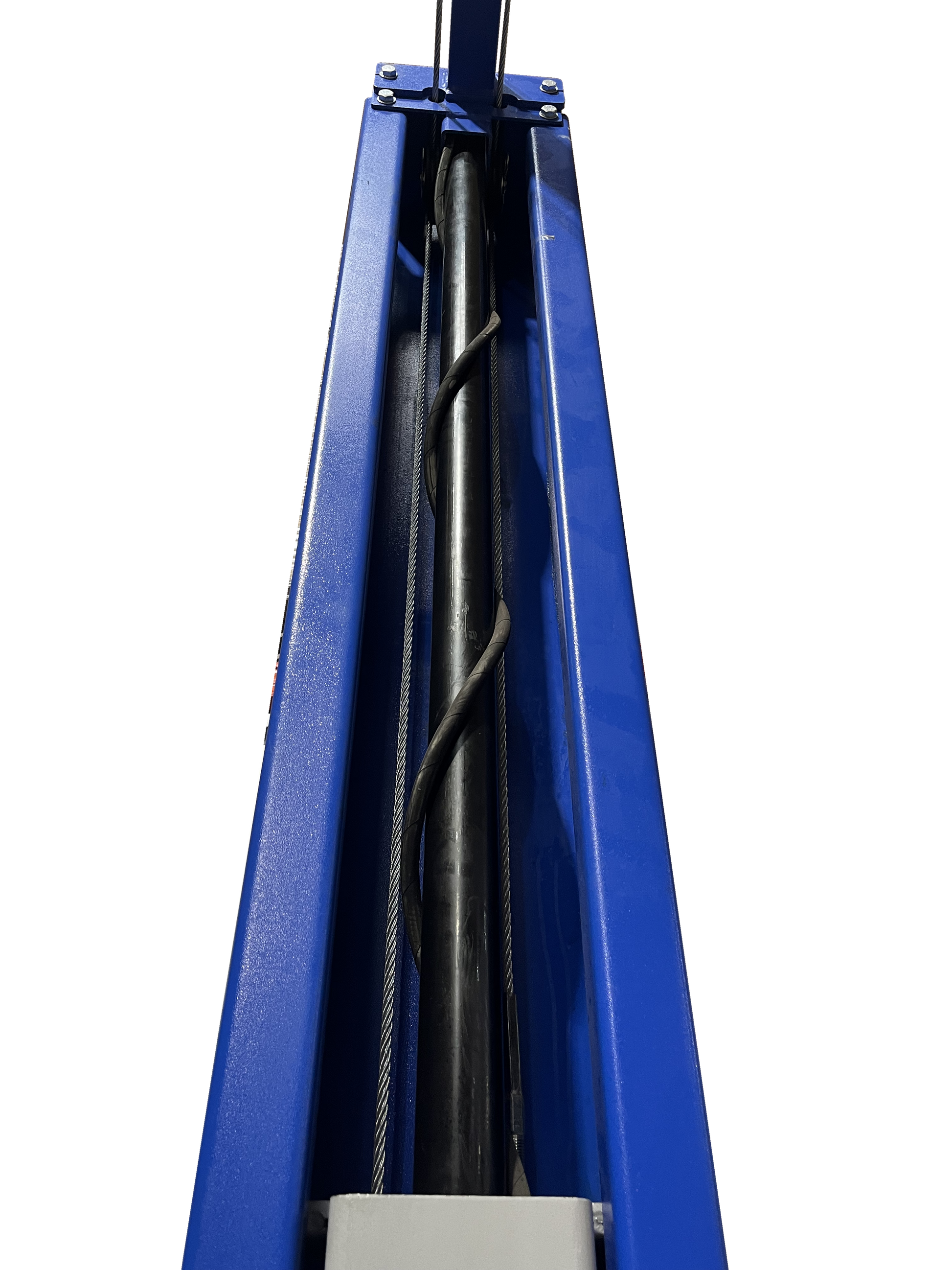

- Direct Drive pull Cylinders
- Single Point Lock Release

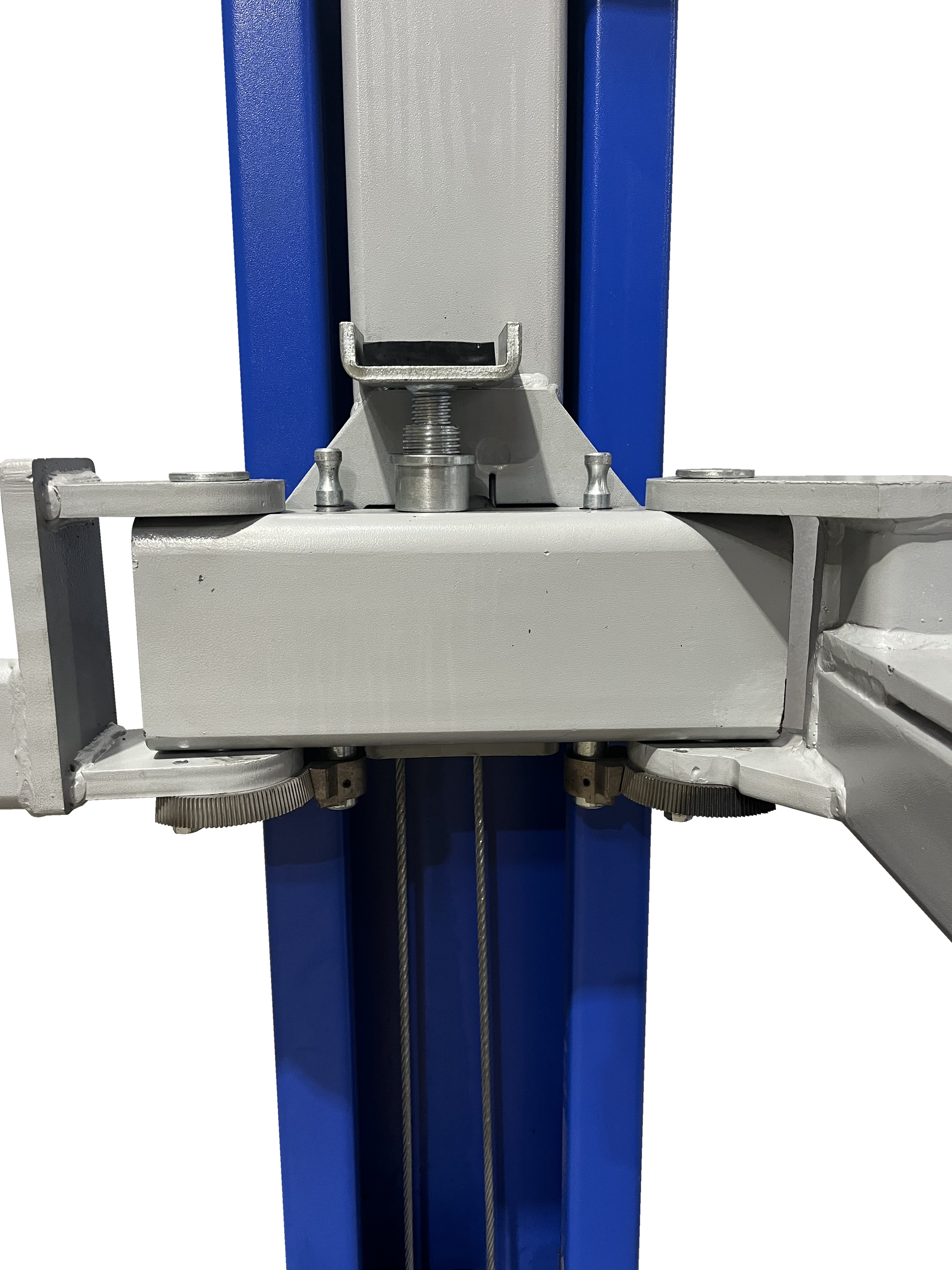

- Heavy Duty Arm Restraint System

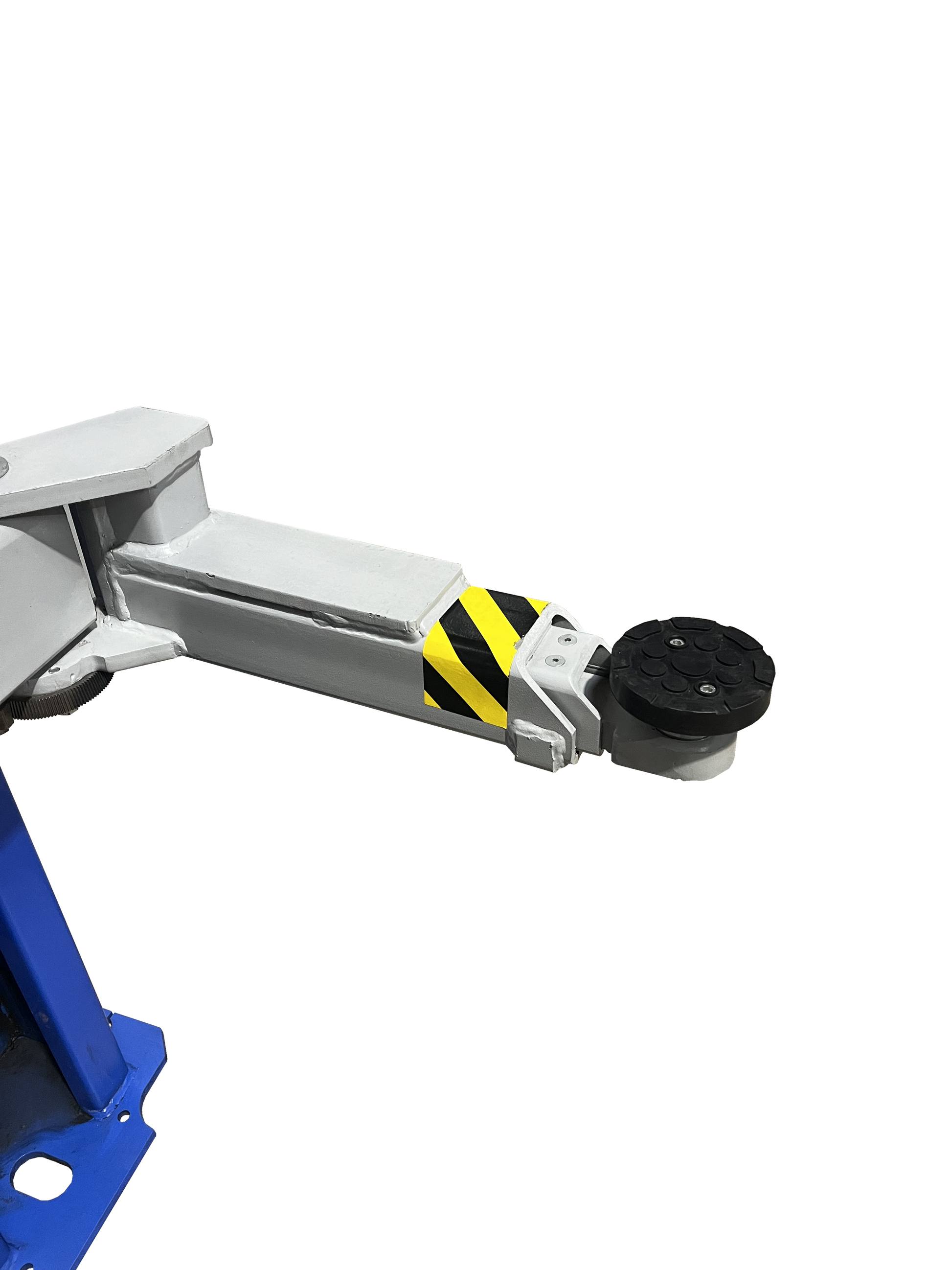

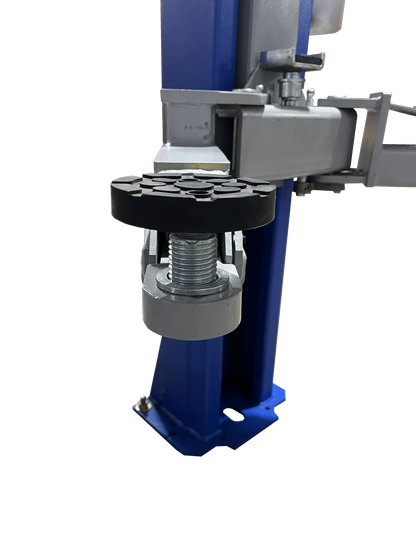

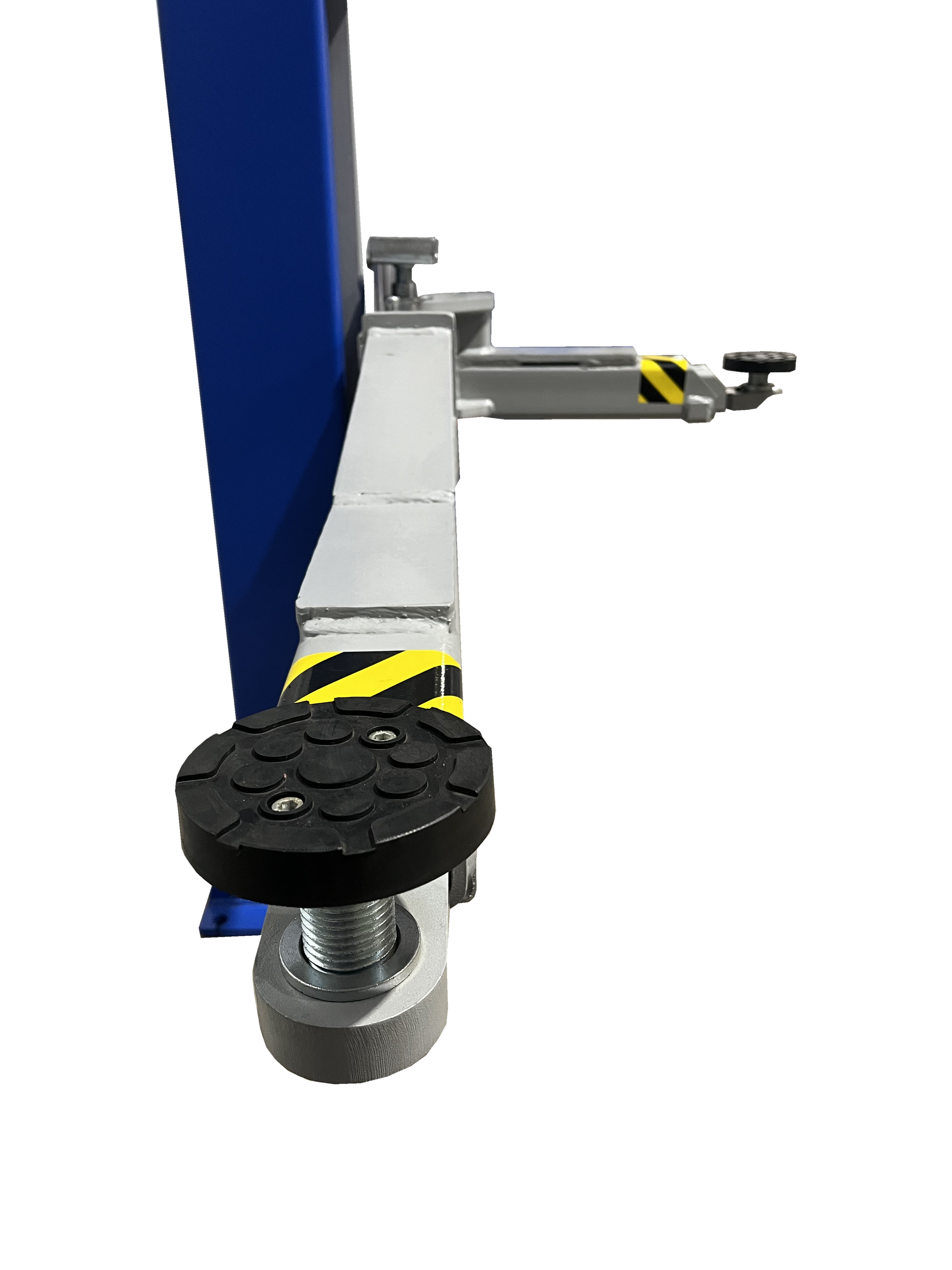

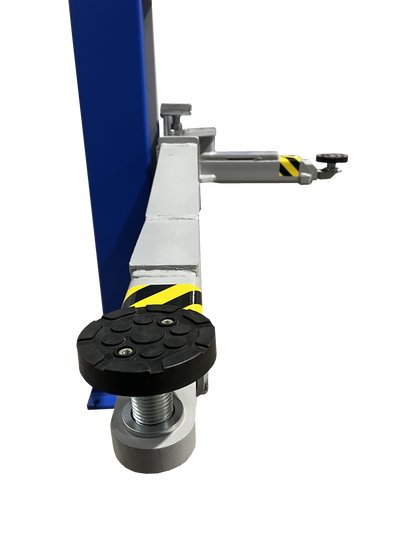

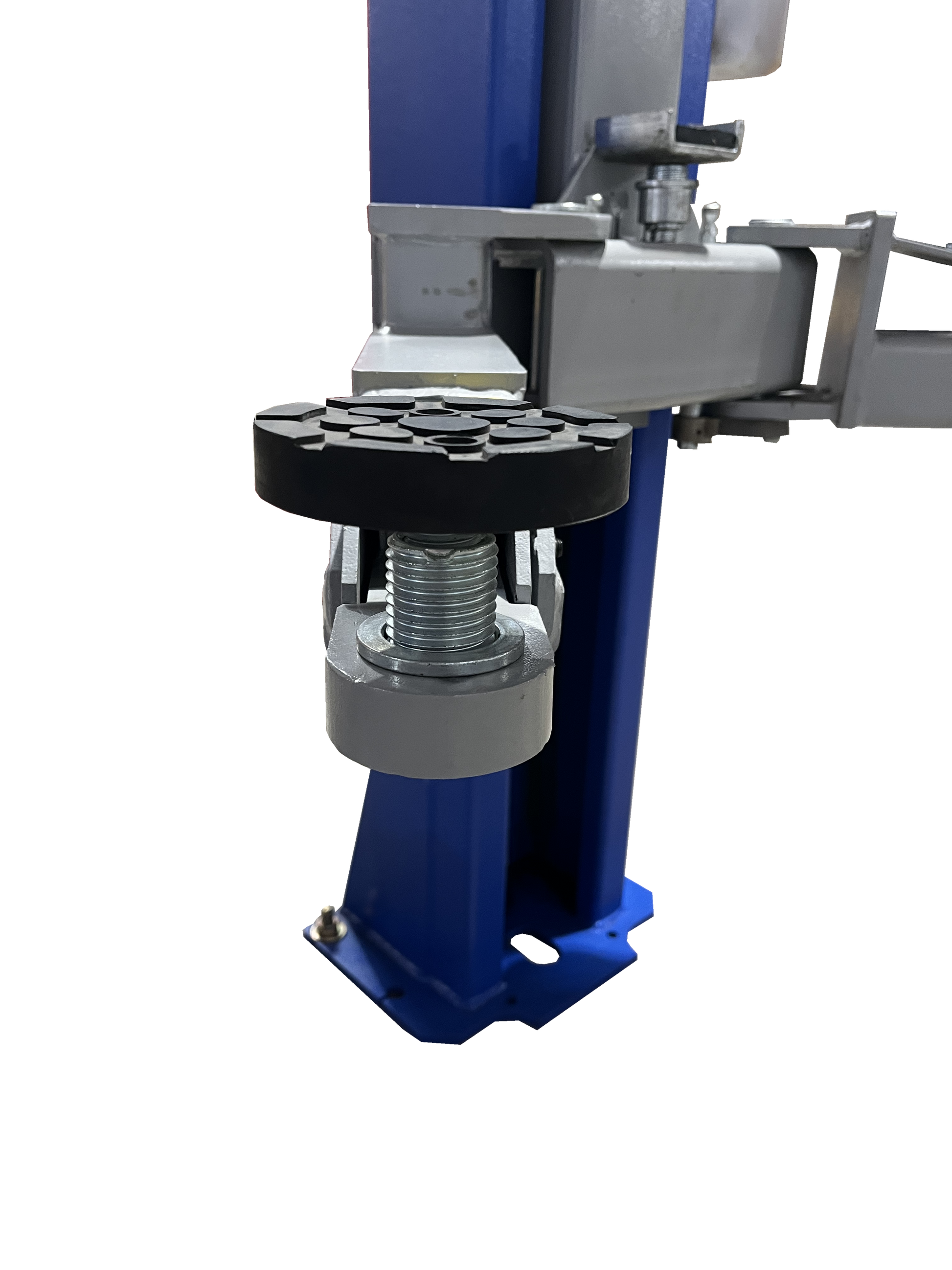

- Spin Up Low Profile Lift Pads

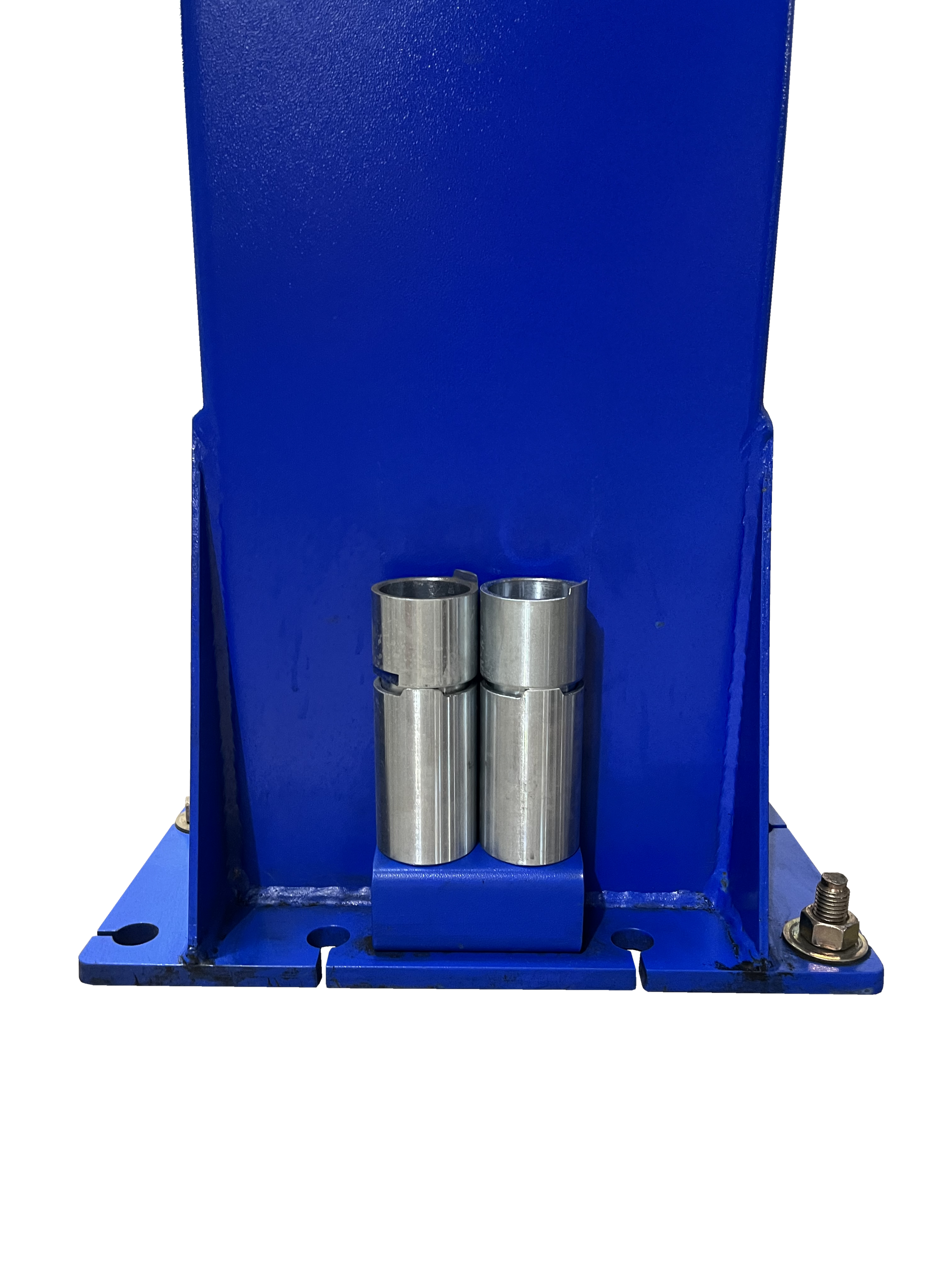

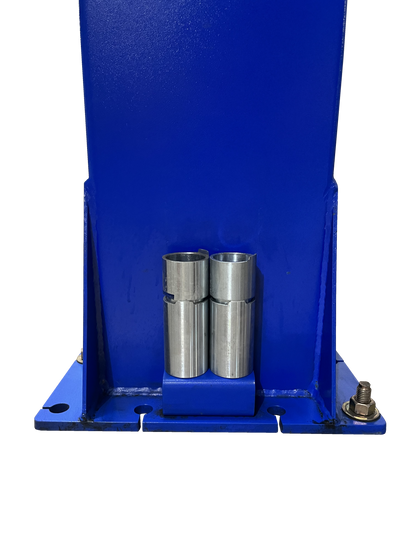

- Stackable Adapters Included
- External hose guards
Specifications | |
---|---|
Capacity | 11,000 lbs |
Overall Height | 144″ |
Overall Width with Power Unit | 145-1/2″ |
Maximum Lift Height | 71″ |
Width Between Columns | 116″ |
Minimum Pad Height | 4″ |
Drive-Thru Clearance | 104″ |
Lifting Speed | 50 seconds |
Arm Type | Bi-Symmetric |
Floor Type | Clear Floor |

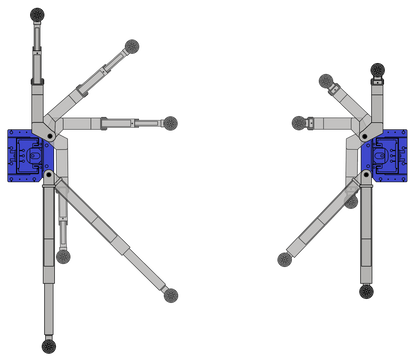

Short Arm Reach (min/max) | 23″ – 45″ |
Long Arm Reach (min/max) | 41″ – 57″ |
Maximum Load Per Arm | 2,750 lbs |
Shipping Weight | 1,705 lbs |

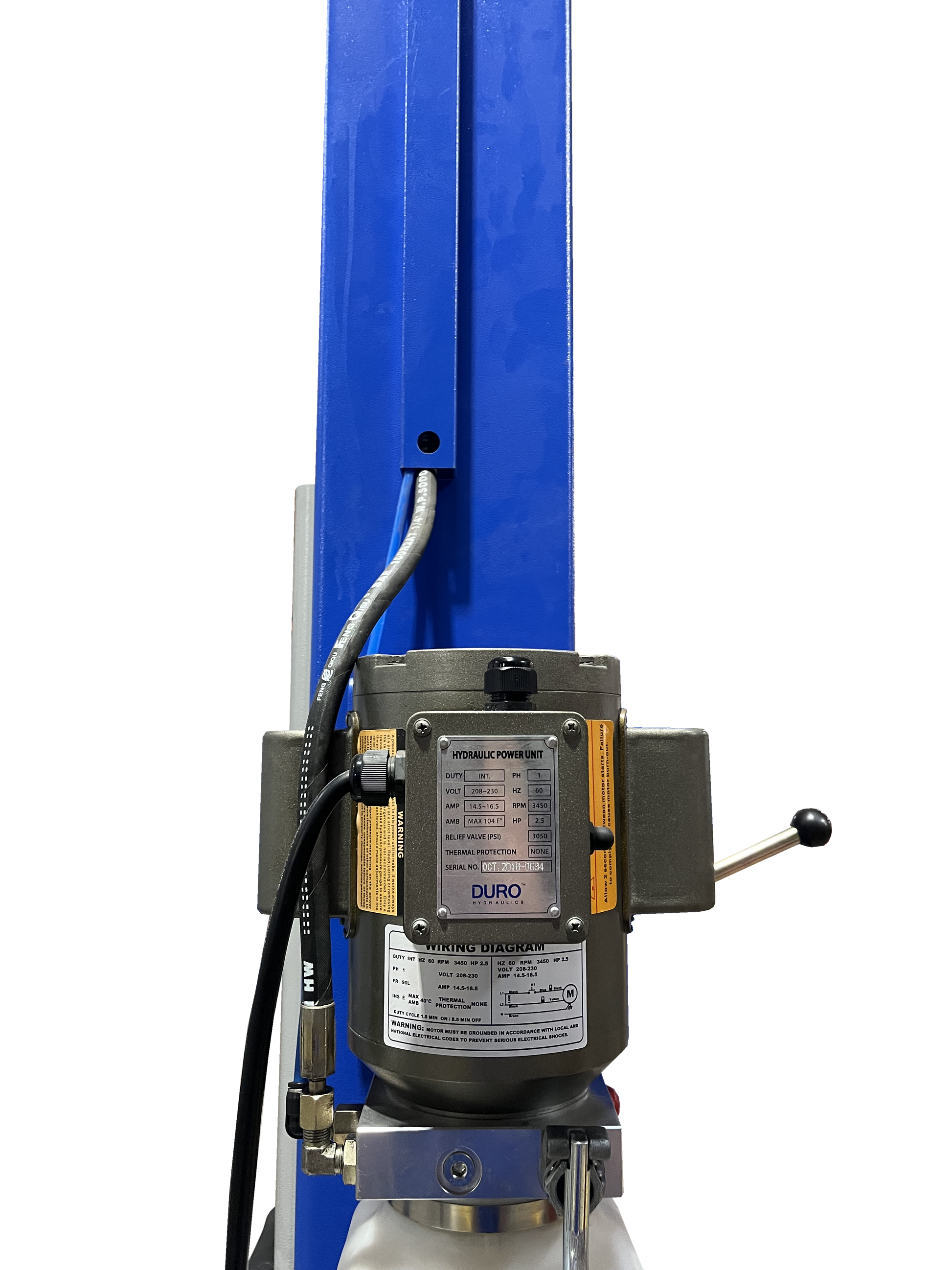

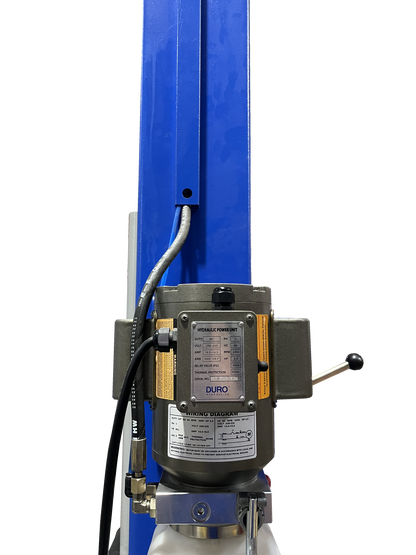

Power Requirements | 220V – 20 AMP – 1 PH |
