TUXEDO TP9KSCX 9,000 LB 2-Post Clear Floor
TUXEDO TP9KSCX 9,000 LB 2-Post Clear Floor
SKU: TP9KSCX
- Regular price
- Price: $2,250.00
- Regular price
- List Price: $3,599.00
- Sale price
- Price: $2,250.00
- Unit price
- / per
Couldn't load pickup availability
Share

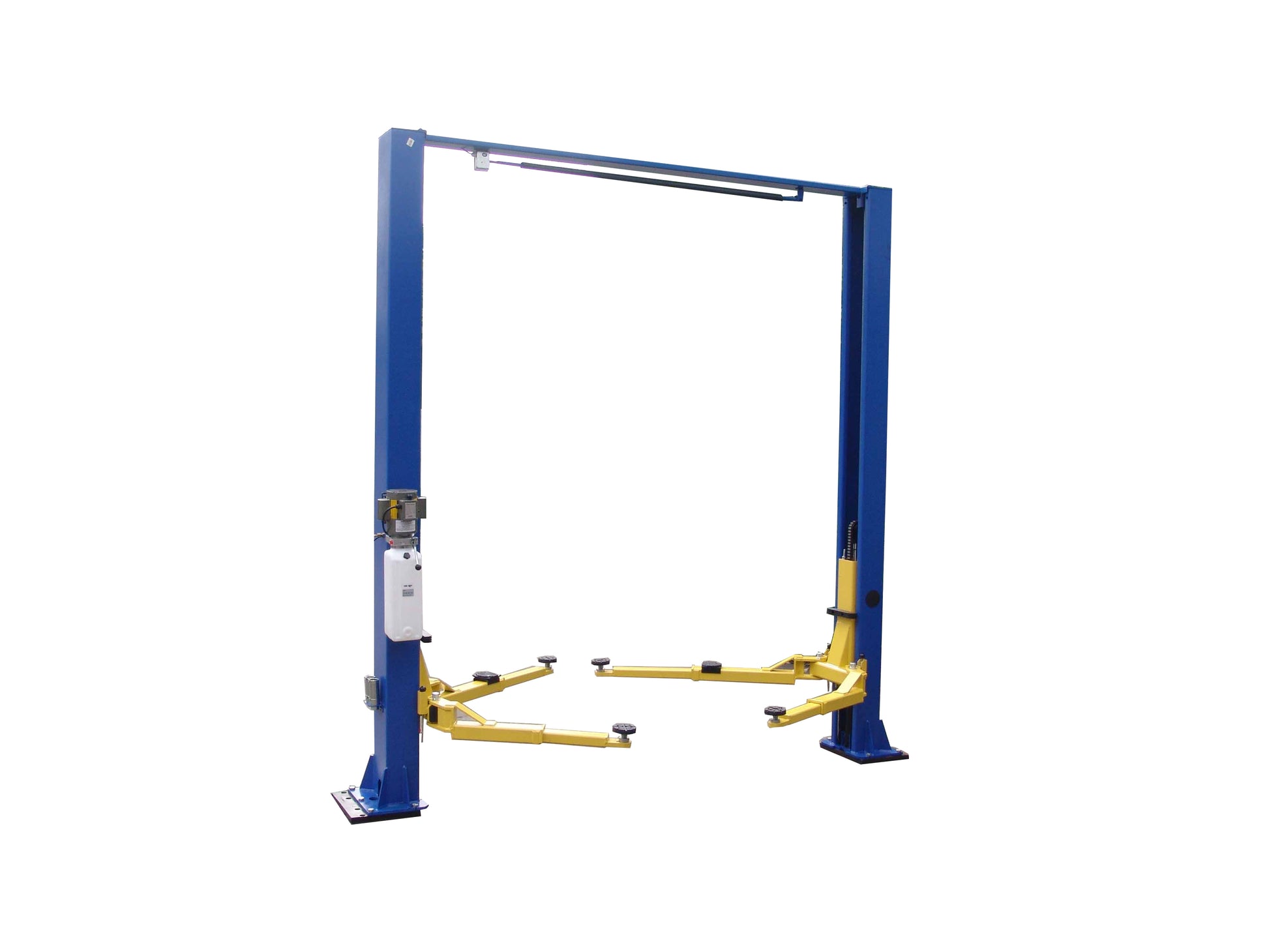

The Tuxedo TP9KSCX is a two-post clear floor vehicle lift engineered for professional automotive service facilities. With a lifting capacity of 9,000 lbs, it accommodates a wide range of vehicles, including passenger cars, light trucks, and SUVs. The symmetric arm design ensures balanced lifting, while features like rubber door guards and low-profile spin-up lift pads enhance vehicle protection during maintenance.
The lift incorporates chain drive cylinders and a dual-point lock release system for reliable and secure operation. Its single-piece column construction and internal hose routing contribute to a clean and organized workspace. Additionally, the TP9KSCX comes with stackable adapters, providing versatility for various vehicle heights. This lift is an excellent choice for professionals seeking efficiency and safety in vehicle maintenance.
- 9,000 lbs capacity
- Symmetric Arms

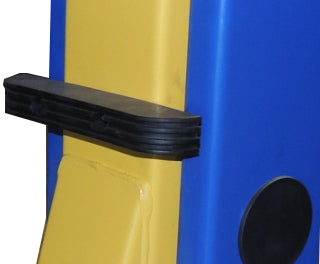

- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- Auto Arm Restraint System
- Single Piece Column

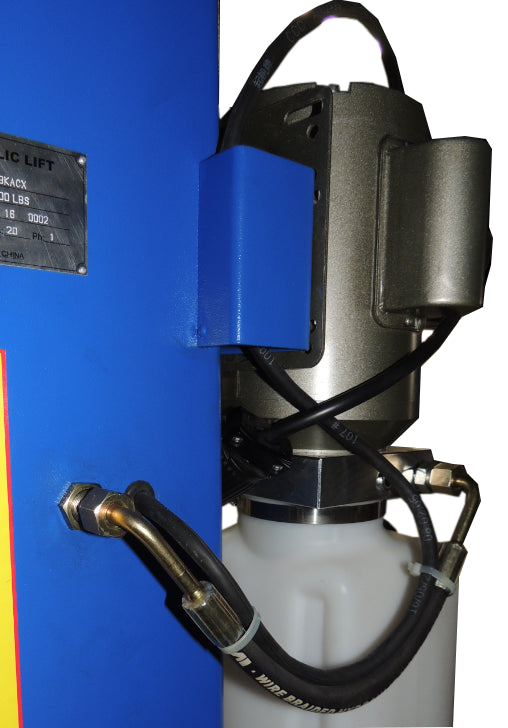

- Internal Hose routing

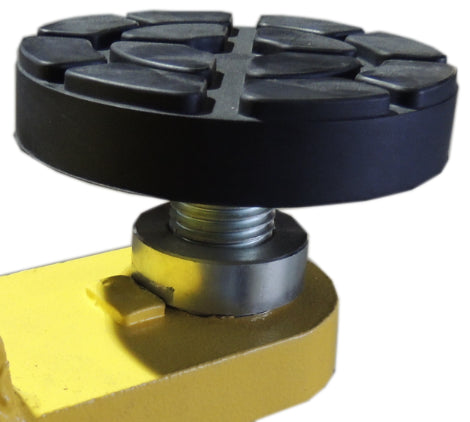

- Low profile Spin Up Lift Pads

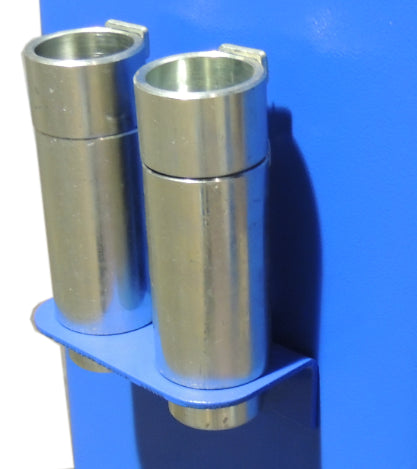

- Stackable Adapters Included
Specifications | |
---|---|
Capacity | 9,000 lbs |
Overall Height | 142-7/8″ |
Overall Width with Power Unit | 138″ |
Maximum Lift Height | 72″ |
Width Between Columns | 113-5/8″ |
Minimum Pad Height | 4″ |
Drive-Thru Clearance | 96″ |
Lifting Speed | 50 seconds |
Arm Type | Symmetric |
Floor Type | Clear Floor |
Short Arm Reach (min/max) | 31″-45″ |
Long Arm Reach (min/max) | Same |
Maximum Load Per Arm | 2,250 lbs |
Shipping Weight | 1,370 lbs |
Power Requirements | 220V – 20 AMP – 1 PH |
