TUXEDO TP9KFX 9,000 LB 2-Post Floor Plate
TUXEDO TP9KFX 9,000 LB 2-Post Floor Plate
SKU: TP9KFX
- Regular price
- Price: $2,150.00
- Regular price
- List Price: $3,399.00
- Sale price
- Price: $2,150.00
- Unit price
- / per
You Save:
$1,249.00 (37%)
Sale
Sold out
Couldn't load pickup availability
Share

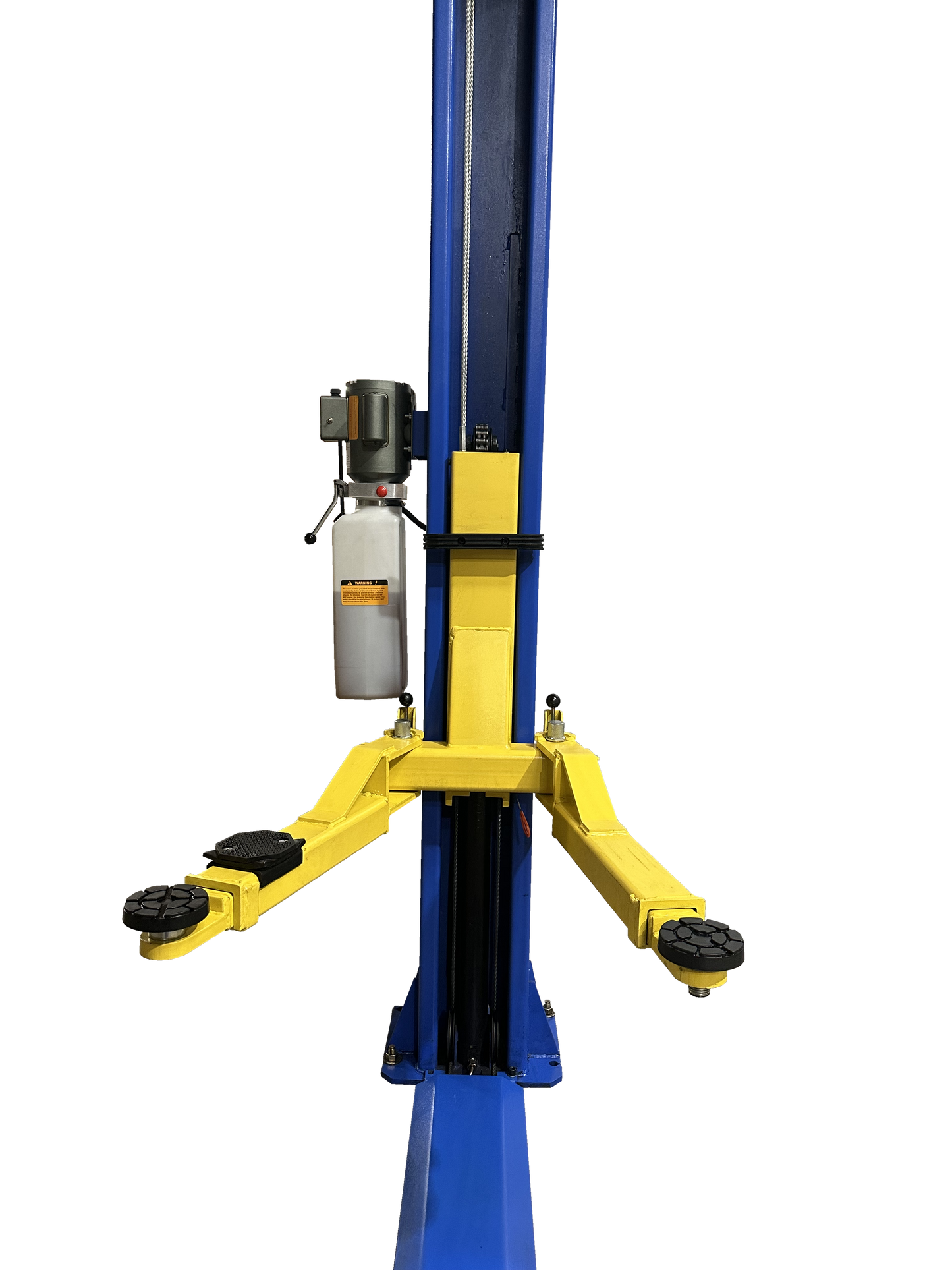

The Tuxedo TP9KFX is a robust two-post floor plate vehicle lift designed to handle up to 9,000 lbs, making it ideal for servicing a wide range of vehicles, including passenger cars, light trucks, and SUVs. Its symmetric arm design ensures balanced lifting, while the chain drive cylinders and dual-point lock release system provide reliable and secure operation.
Equipped with rubber door guards, low-profile spin-up lift pads, and stackable adapters, the TP9KFX offers versatility and safety for various vehicle configurations. The lift's durable powder-coated finish enhances its longevity, making it a valuable addition to any automotive service facility.
- 9,000 lbs capacity
- Symmetric Arms

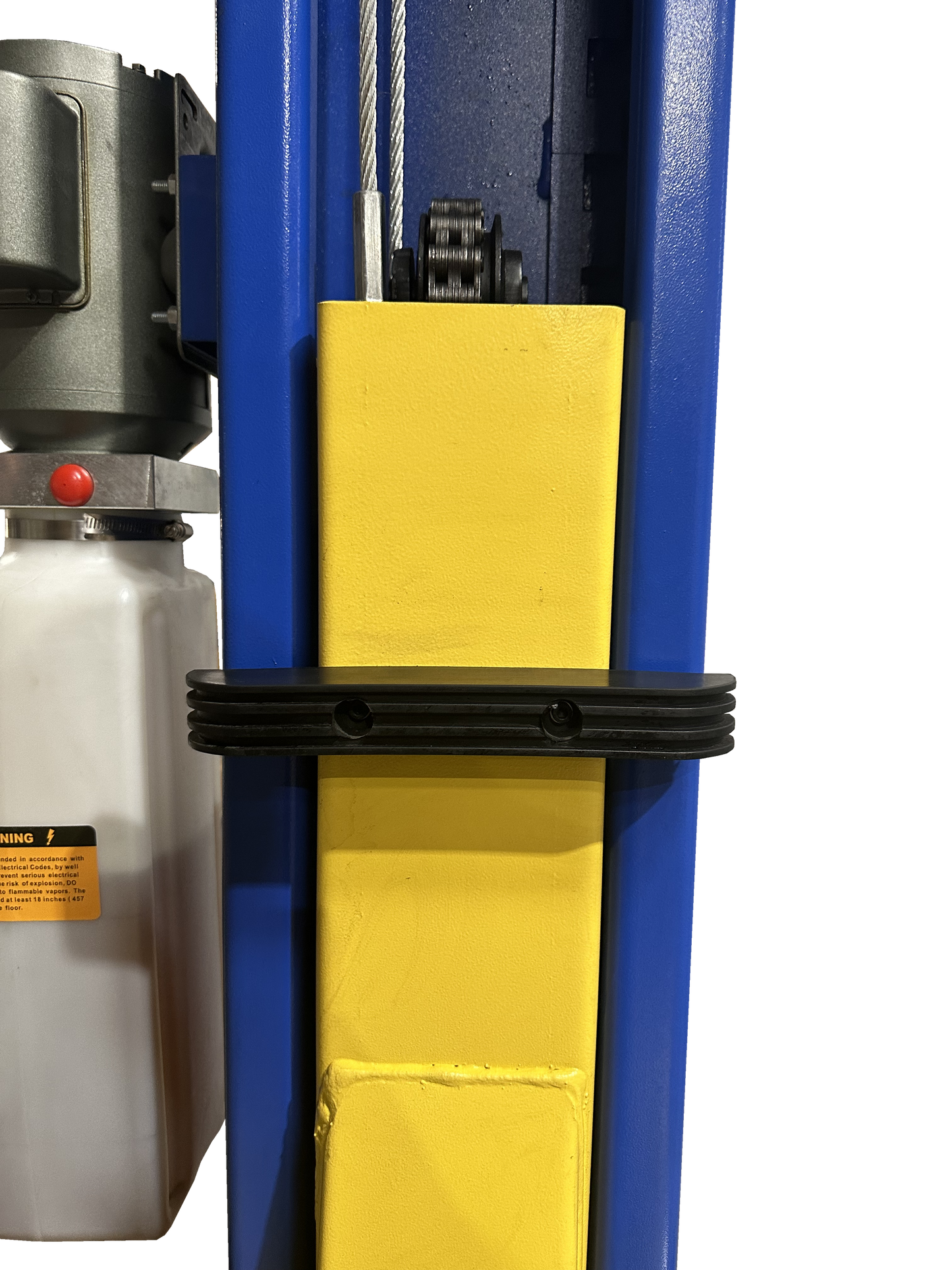

- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- Auto Arm Restraint System
- Internal Hose routing

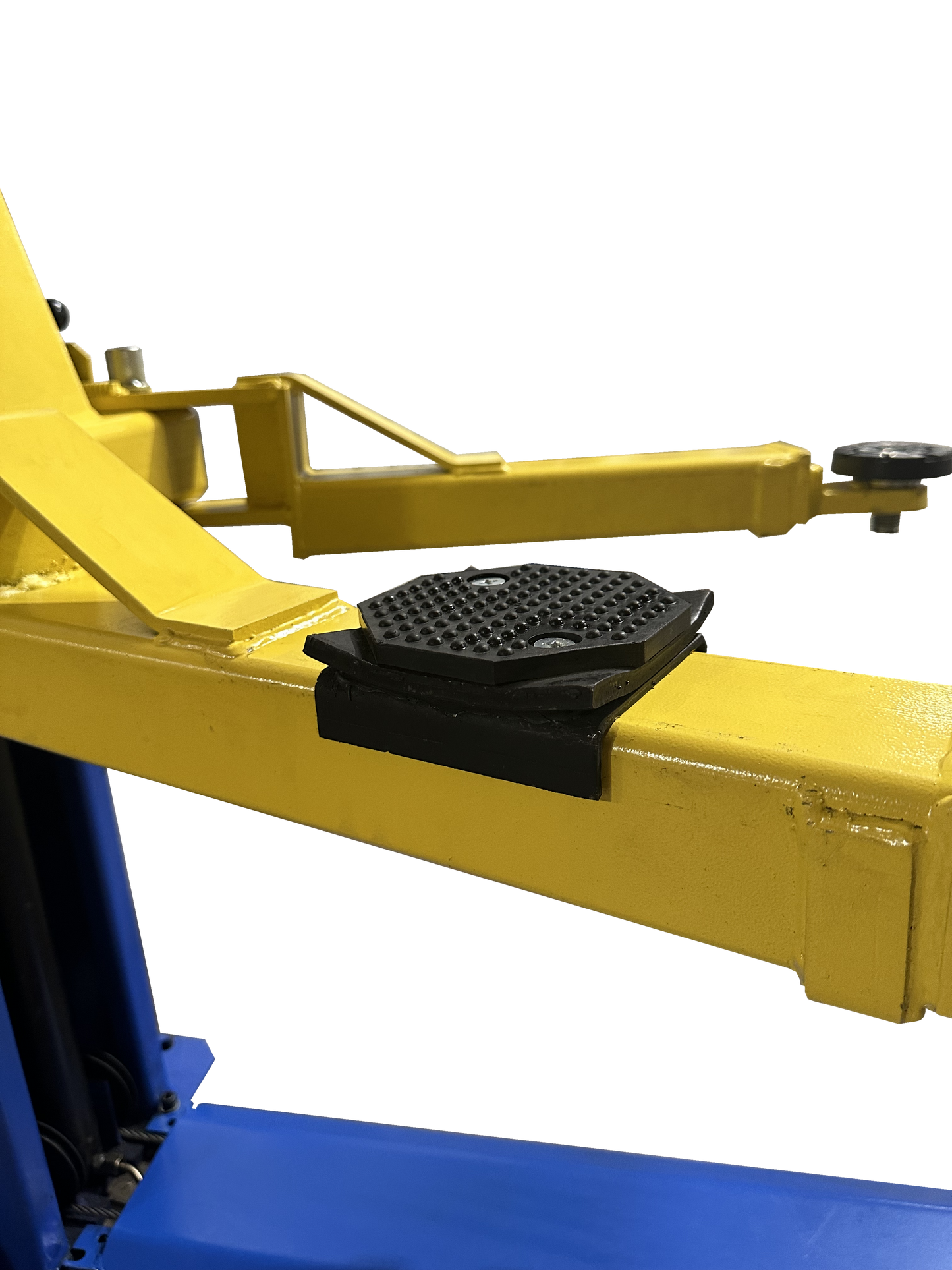

- Low profile Spin Up Lift Pads
- Stackable Adapters Included
Specifications | |
---|---|
Capacity | 9,000 lbs |
Overall Height | 111-7/8″ |
Overall Width with Power Unit | 134-5/8″ |
Maximum Lift Height | 72″ |
Width Between Columns | 110-3/8″ |
Minimum Pad Height | 4″ |
Drive-Thru Clearance | 101″ |
Lifting Speed | 50 seconds |
Arm Type | Symmetric |
Floor Type | Floor Plate |
Short Arm Reach (min/max) | 31″-45″ |
Long Arm Reach (min/max) | Same |
Maximum Load Per Arm | 2,250 lbs |
Shipping Weight | 1,270 lbs |
Power Requirements | 220V – 20 AMP – 1 PH |
