TUXEDO TP12KC-D 12,000 LB 2-Post Clear Floor
TUXEDO TP12KC-D 12,000 LB 2-Post Clear Floor
SKU: TP12KC-D
- Regular price
- Price: $4,999.00
- Regular price
- List Price: $5,999.00
- Sale price
- Price: $4,999.00
- Unit price
- / per
Couldn't load pickup availability
Share

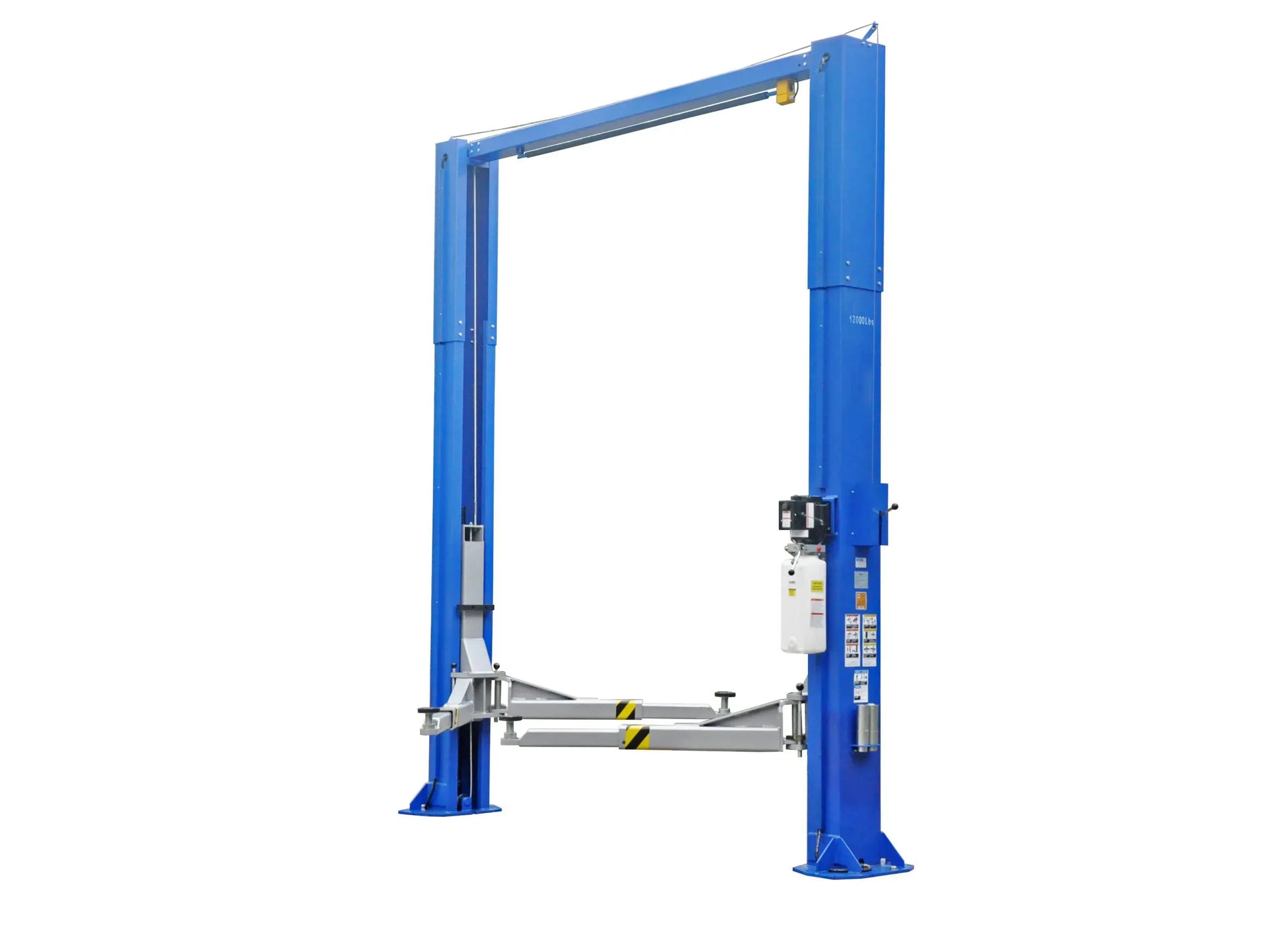

The Tuxedo TP12KC-D is a heavy-duty two-post clear floor vehicle lift designed to accommodate vehicles up to 12,000 lbs, making it suitable for a wide range of cars, trucks, and SUVs. Its symmetric arm design ensures balanced lifting, while features like rubber door guards and drop-in lift pads enhance vehicle protection during maintenance.
The lift incorporates direct drive push cylinders and a single-point pneumatic lock release system for reliable and secure operation. Additionally, external hose guards contribute to a clean and organized workspace. Stackable adapters are included, providing versatility for various vehicle heights. The TP12KC-D is an excellent choice for automotive service facilities seeking a robust and dependable lifting solution.
- 12,000 lbs Capacity

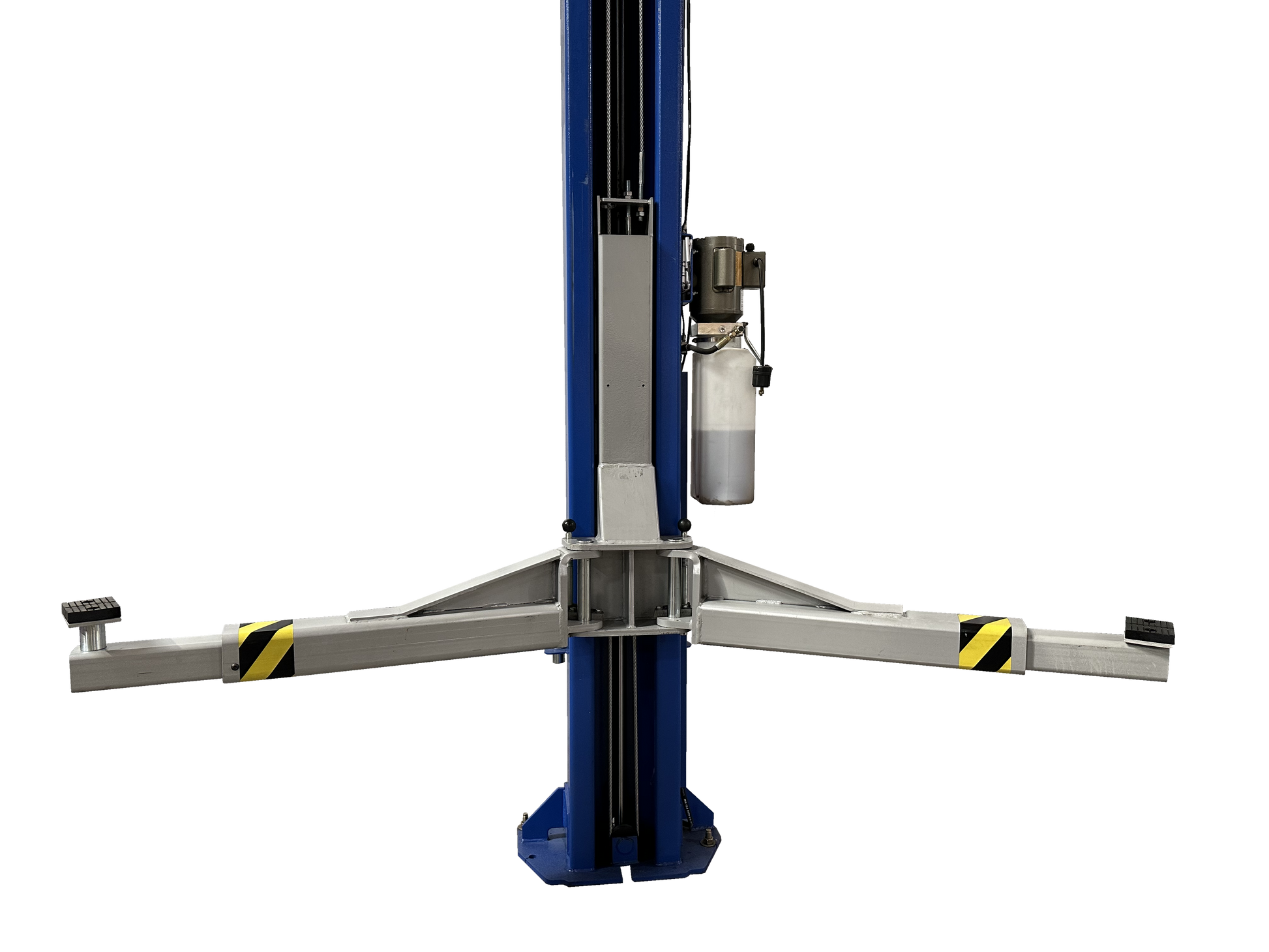

- Symmetric Arms
- Rubber Door Guards

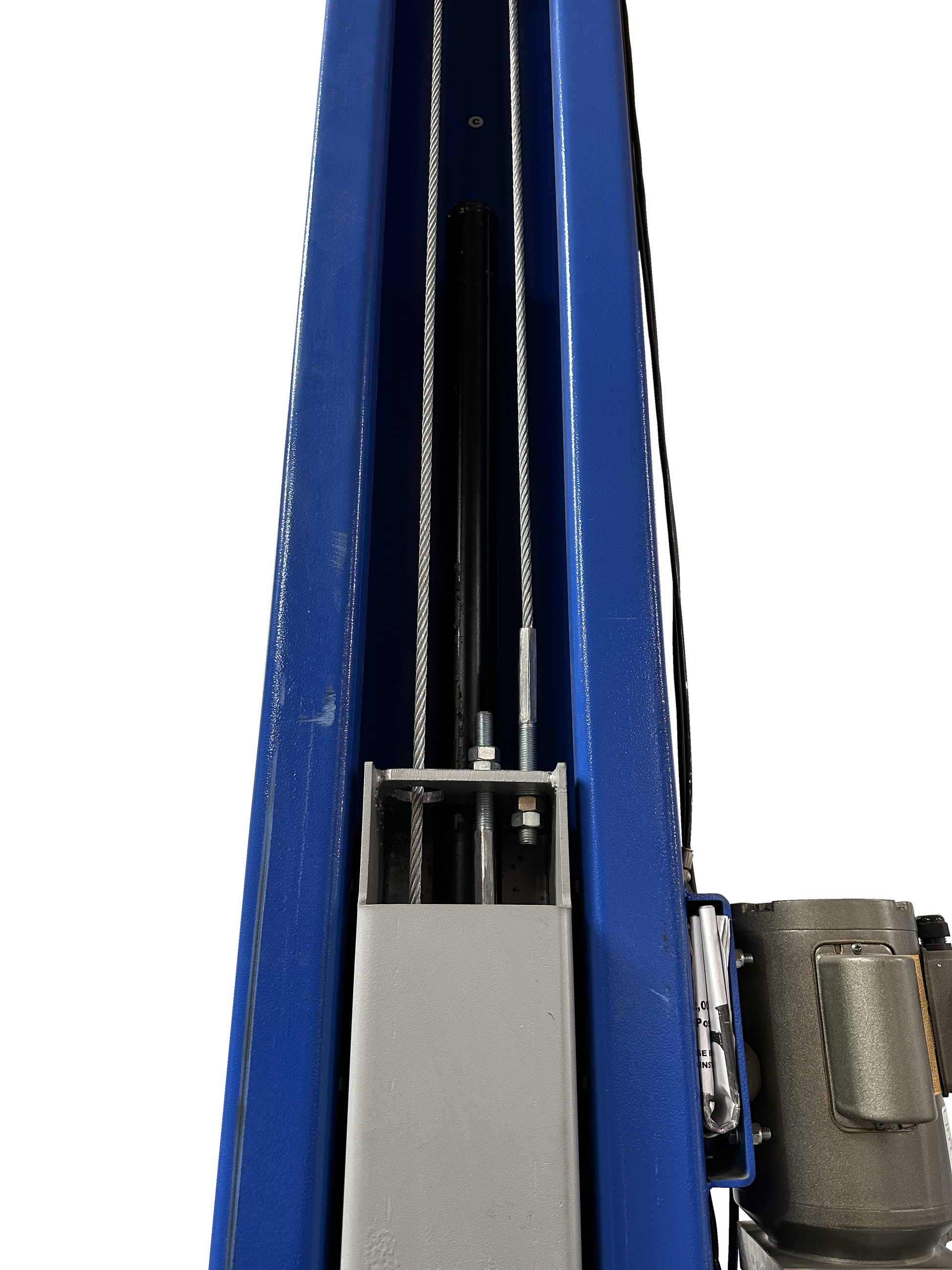

- Direct Drive push Cylinders
- Single Point pneumatic Lock Release

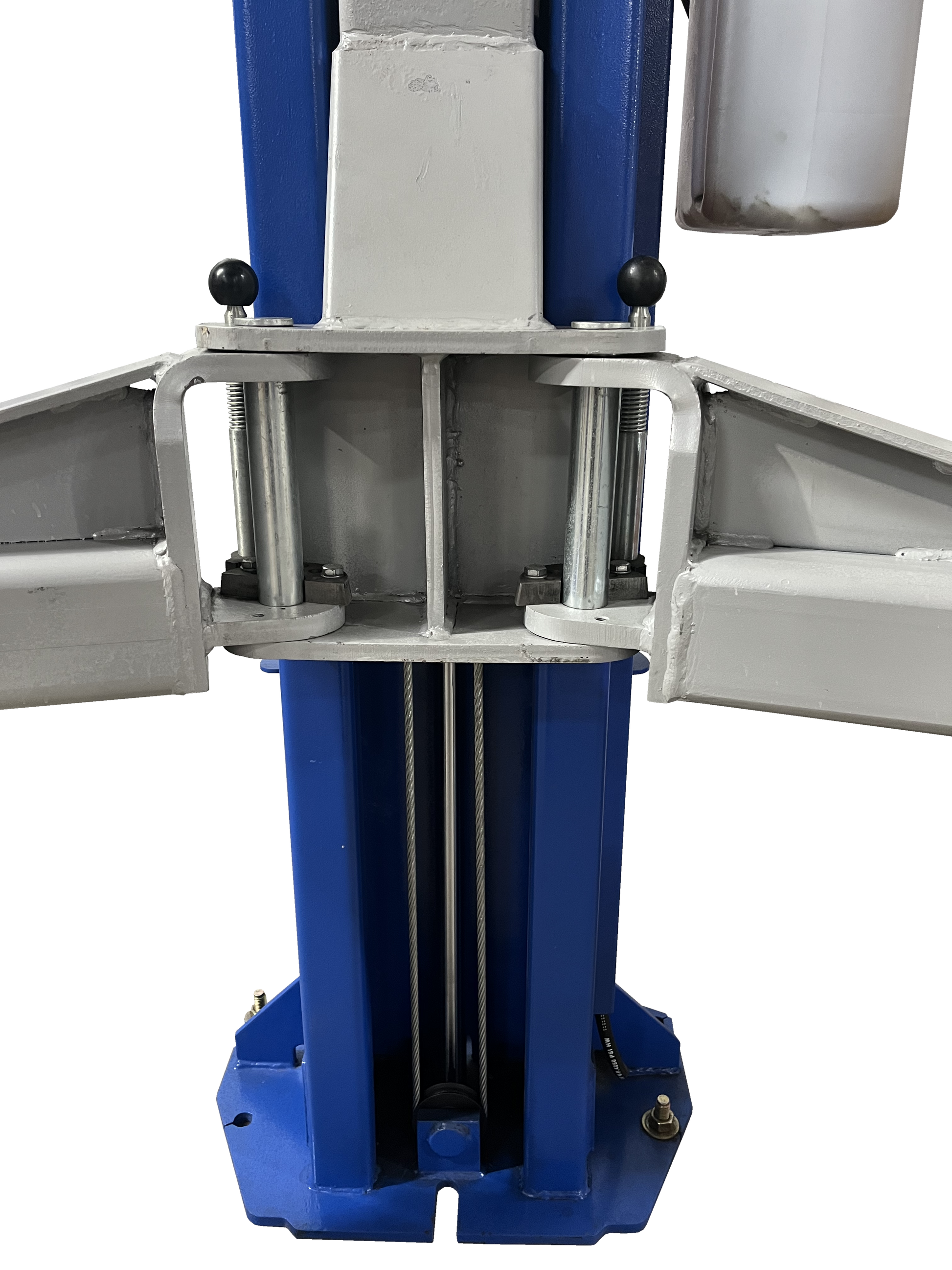

- Heavy Duty Arm Restraint System

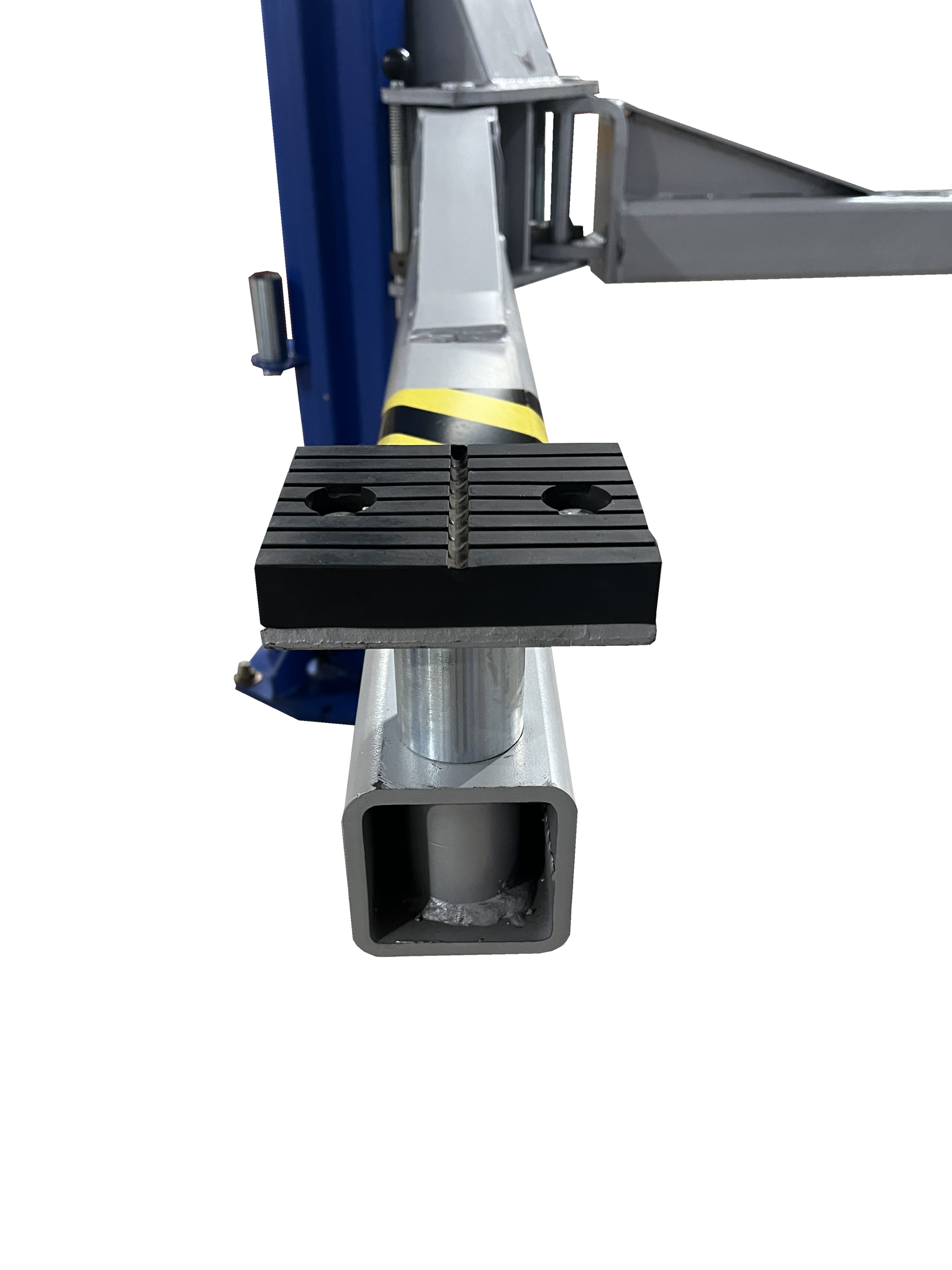

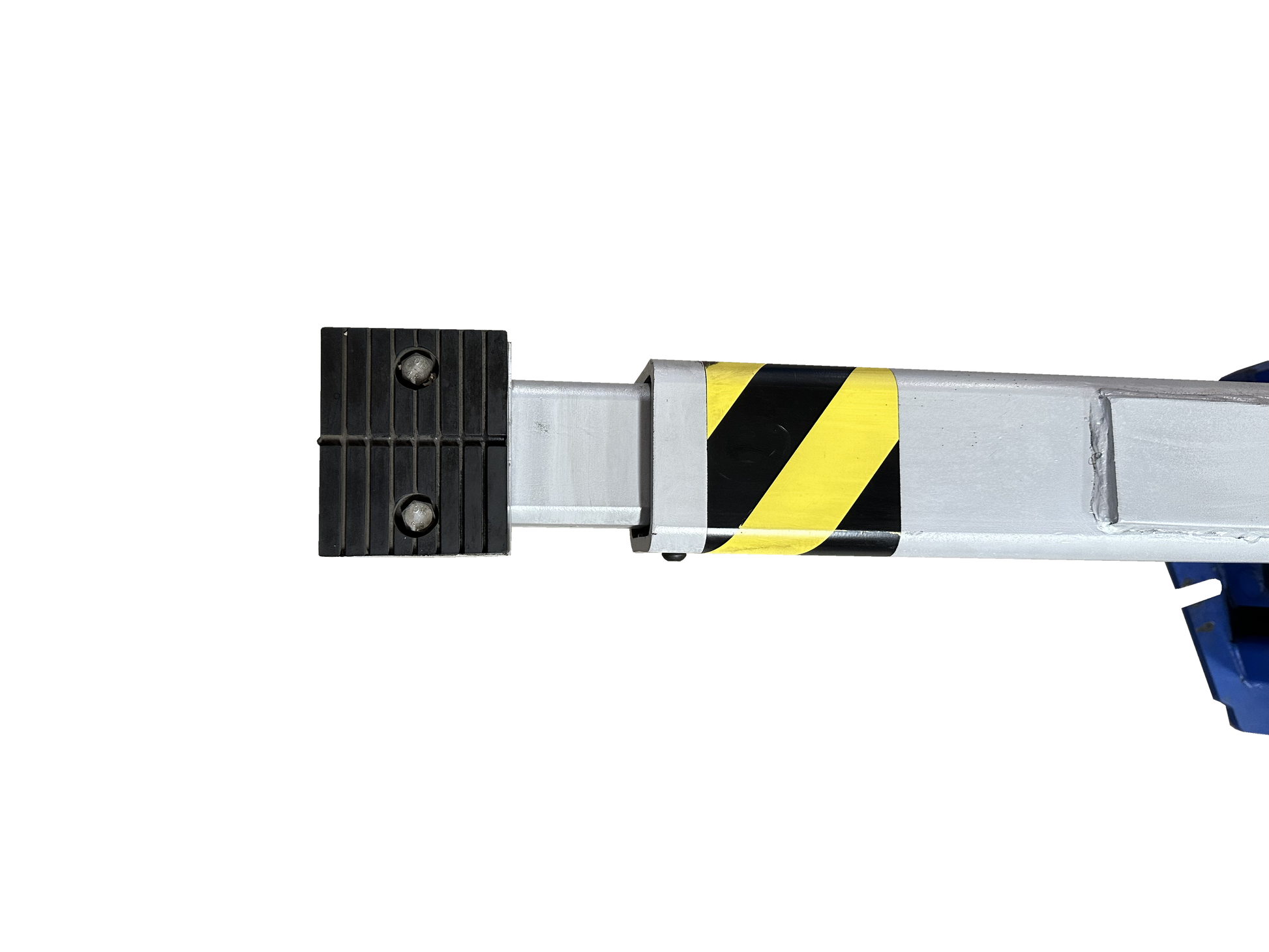

- Drop-in Lift Pads

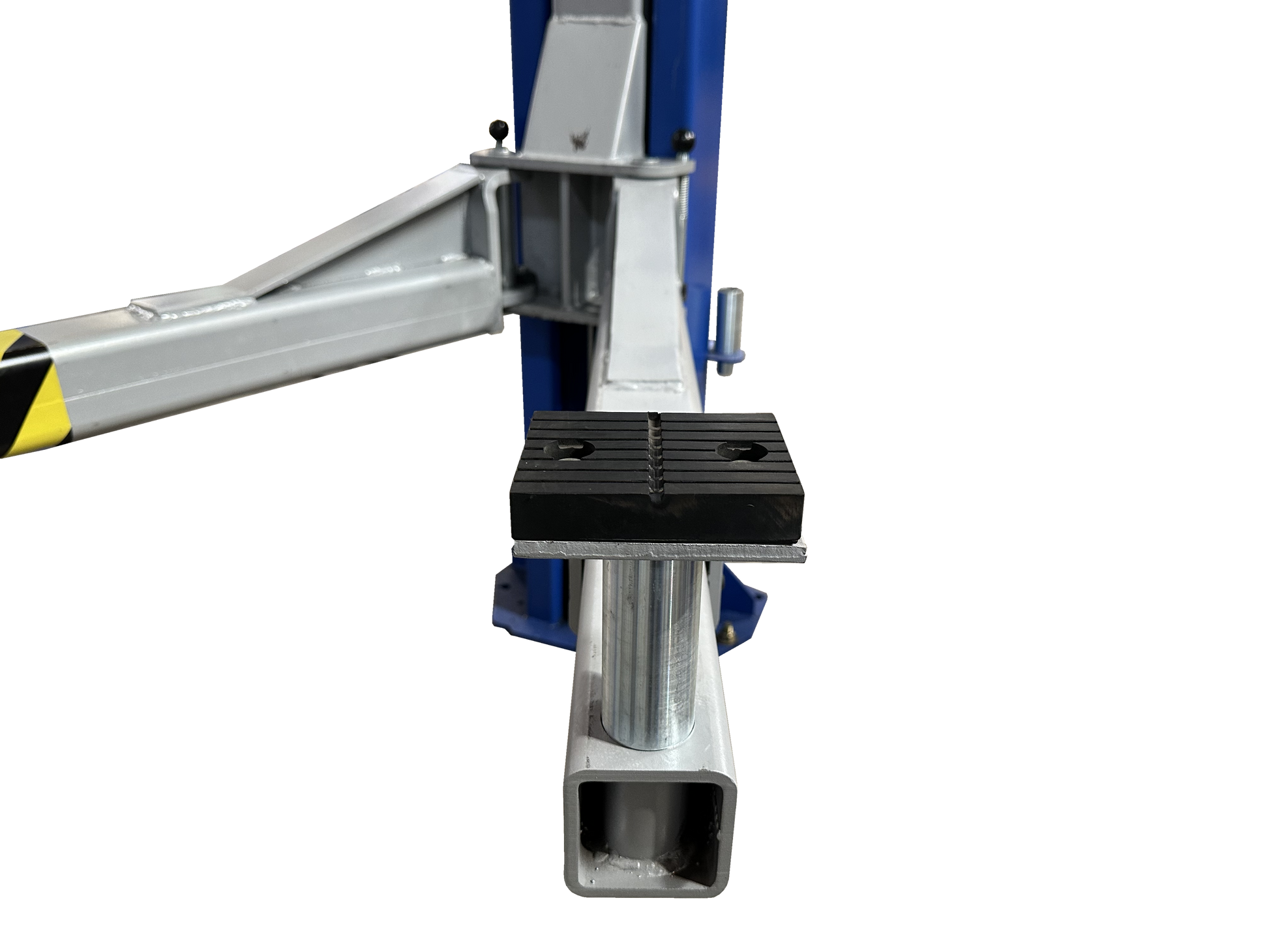

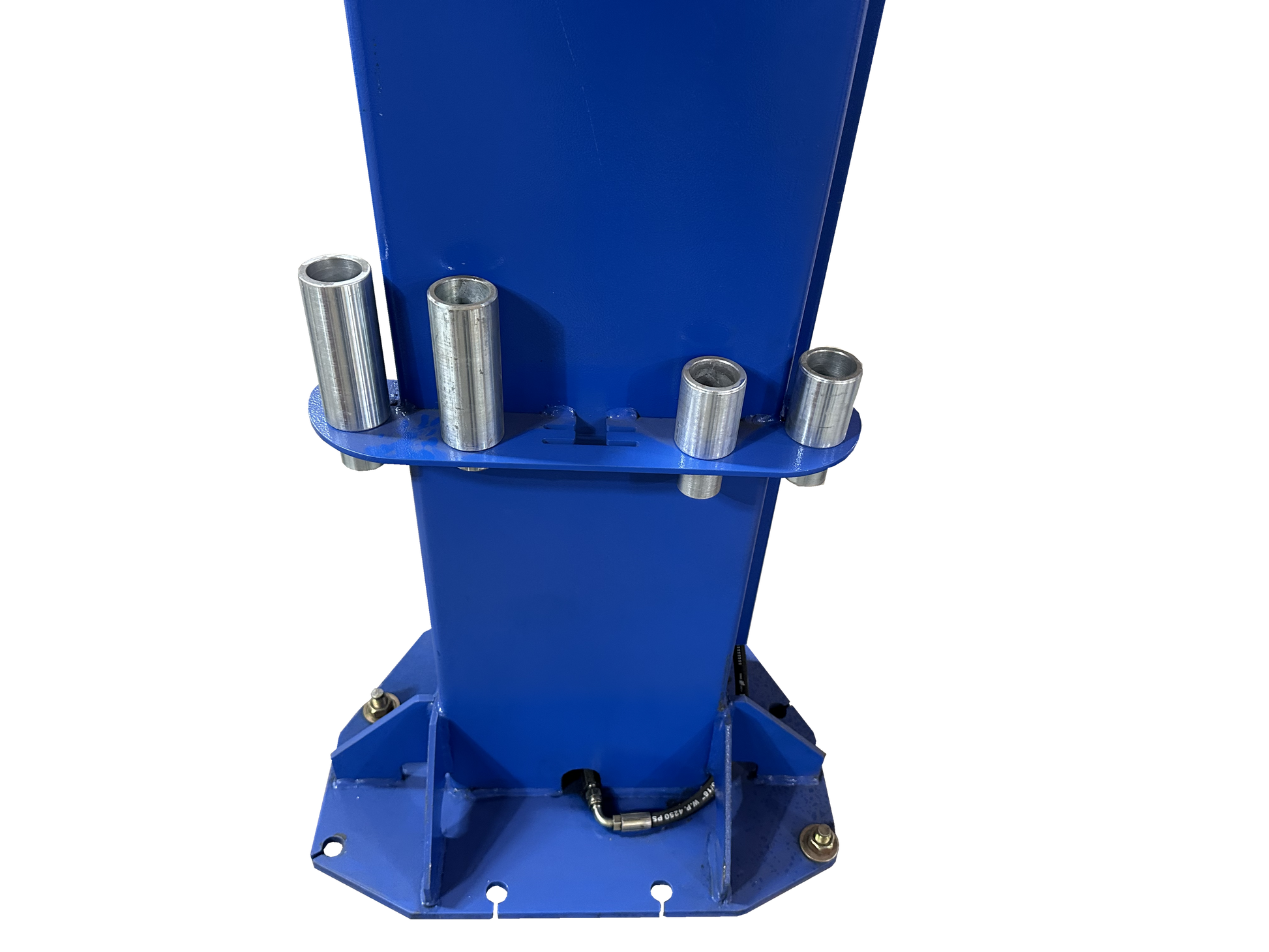

- Stackable Adapters Included
- External hose guards
Specifications | |
---|---|
Capacity | 12,000 lbs |
Overall Height | 165″ |
Overall Width with Power Unit | 151″ |
Maximum Lift Height | 72″ |
Width Between Columns | 122″ |
Minimum Pad Height | 5.5″ |
Drive-Thru Clearance | 109″ |
Lifting Speed | 50 seconds |
Arm Type | Symmetric |
Floor Type | Clear Floor |
Short Arm Reach (min/max) | 37-5/8″ – 56-3/4″ |
Long Arm Reach (min/max) | Same |
Maximum Load Per Arm | 3,000 lbs |
Shipping Weight | 2,295 lbs |
Power Requirements | 220V – 20 AMP – 1 PH |
