iDEAL - TP12KSC-DX 12,000 2-Post Clear Floor

iDEAL - TP12KSC-DX 12,000 2-Post Clear Floor

SKU: TP12KSC-DX

Regular price
Price: $6,049.00
Regular price
List Price: $6,799.00
Sale price
Price: $6,049.00
You Save: $750.00 (11%)
View Cart

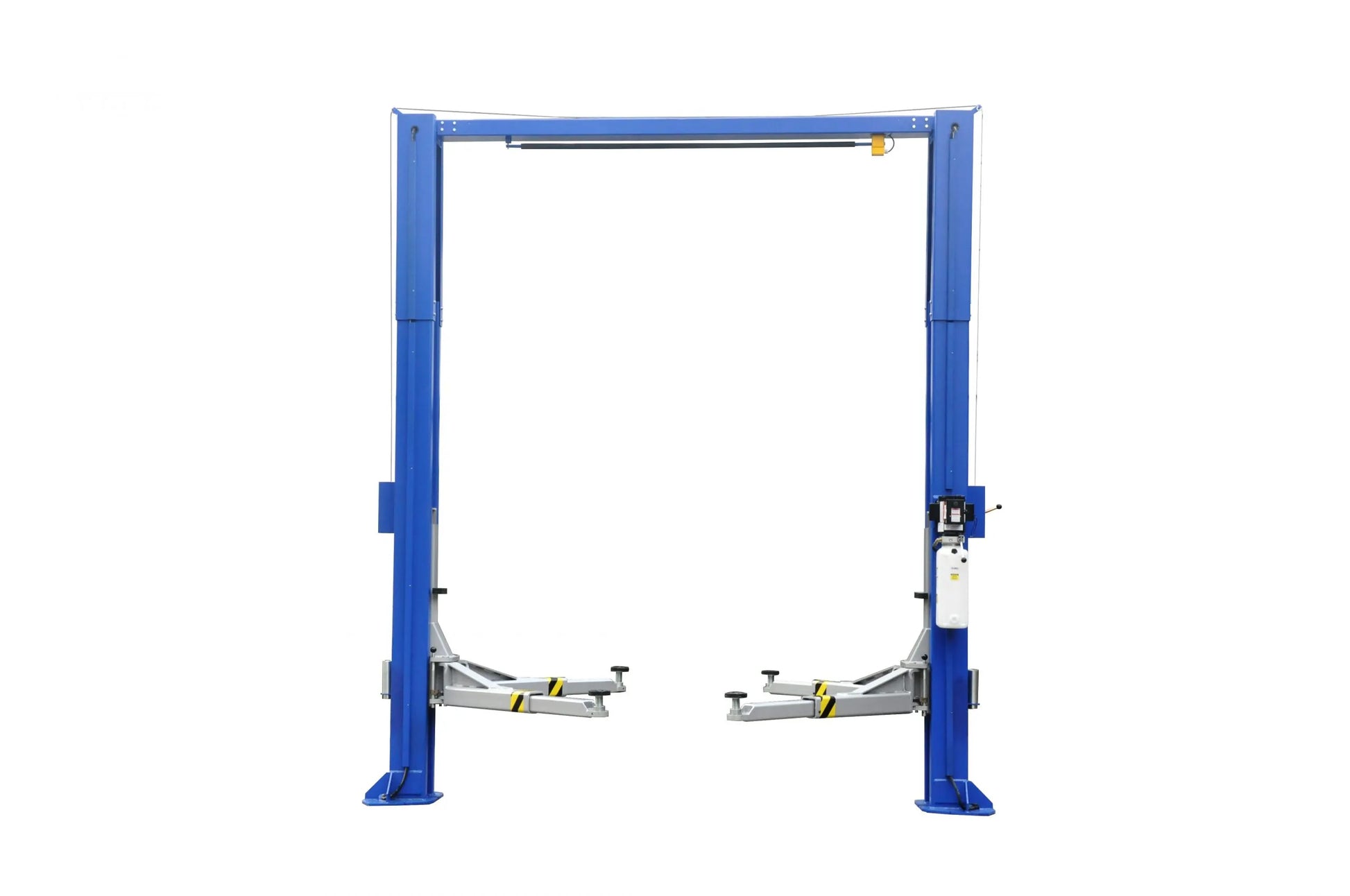

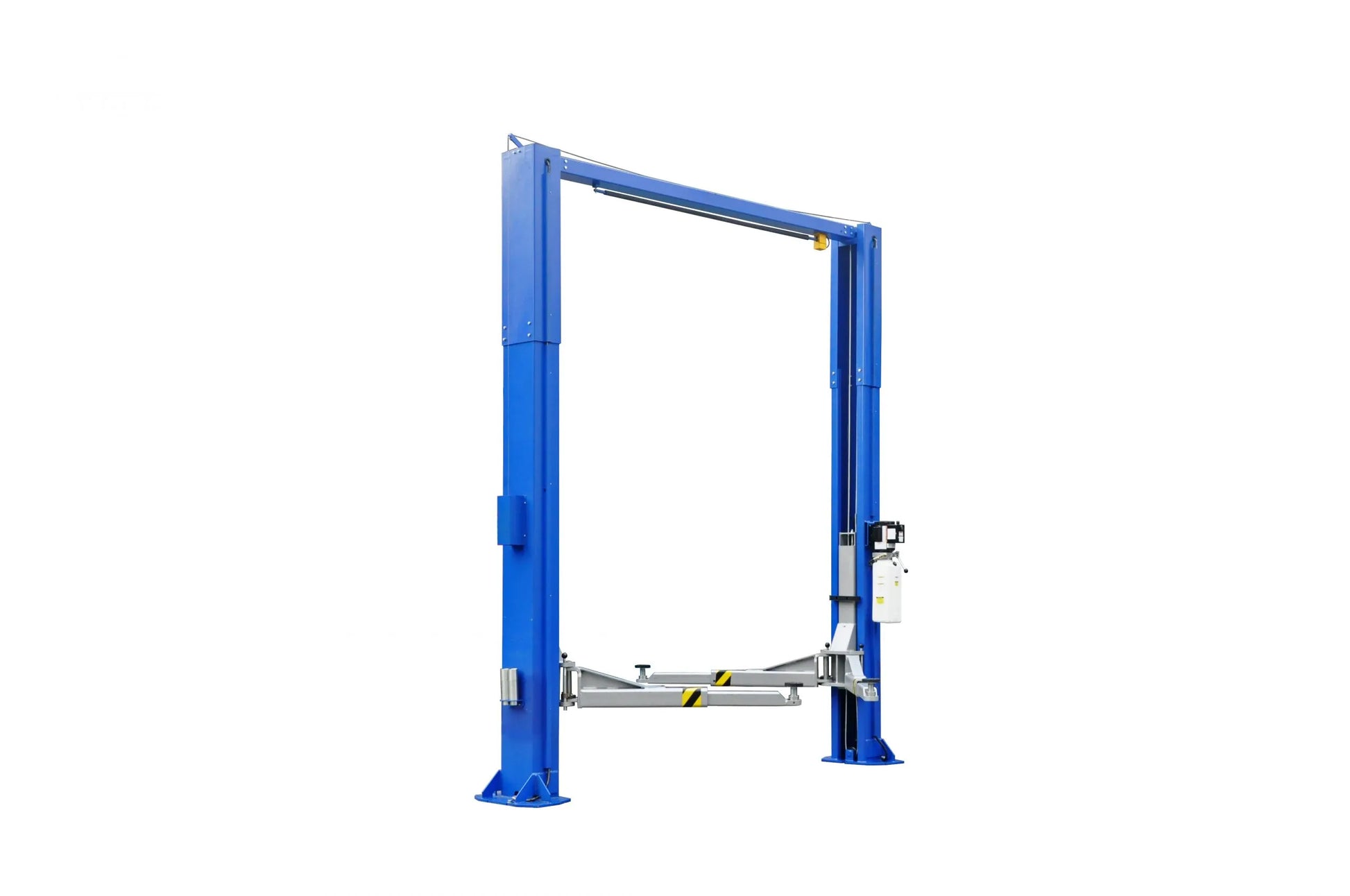

The iDEAL TP12KSCX-DX is an ALI-certified two-post clear floor vehicle lift with a 12,000 lb capacity, designed for professional automotive service facilities. Its symmetric arm design ensures balanced lifting, accommodating a wide range of vehicles, including light-duty trucks and passenger cars. Key features include rubber door guards for vehicle protection, direct drive push cylinders for efficient lifting, and a single-point lock release system enhancing operational safety.

The lift is equipped with a heavy-duty arm restraint system, spin-up lift pads with a minimum height of 5 inches, and stackable adapters to accommodate various vehicle heights. External hose guards contribute to a clean and organized workspace. The TP12KSCX-DX is powered by a Duro Certified Power Unit, meeting MET, UL, and CSA standards, ensuring reliable performance in demanding automotive service environments.

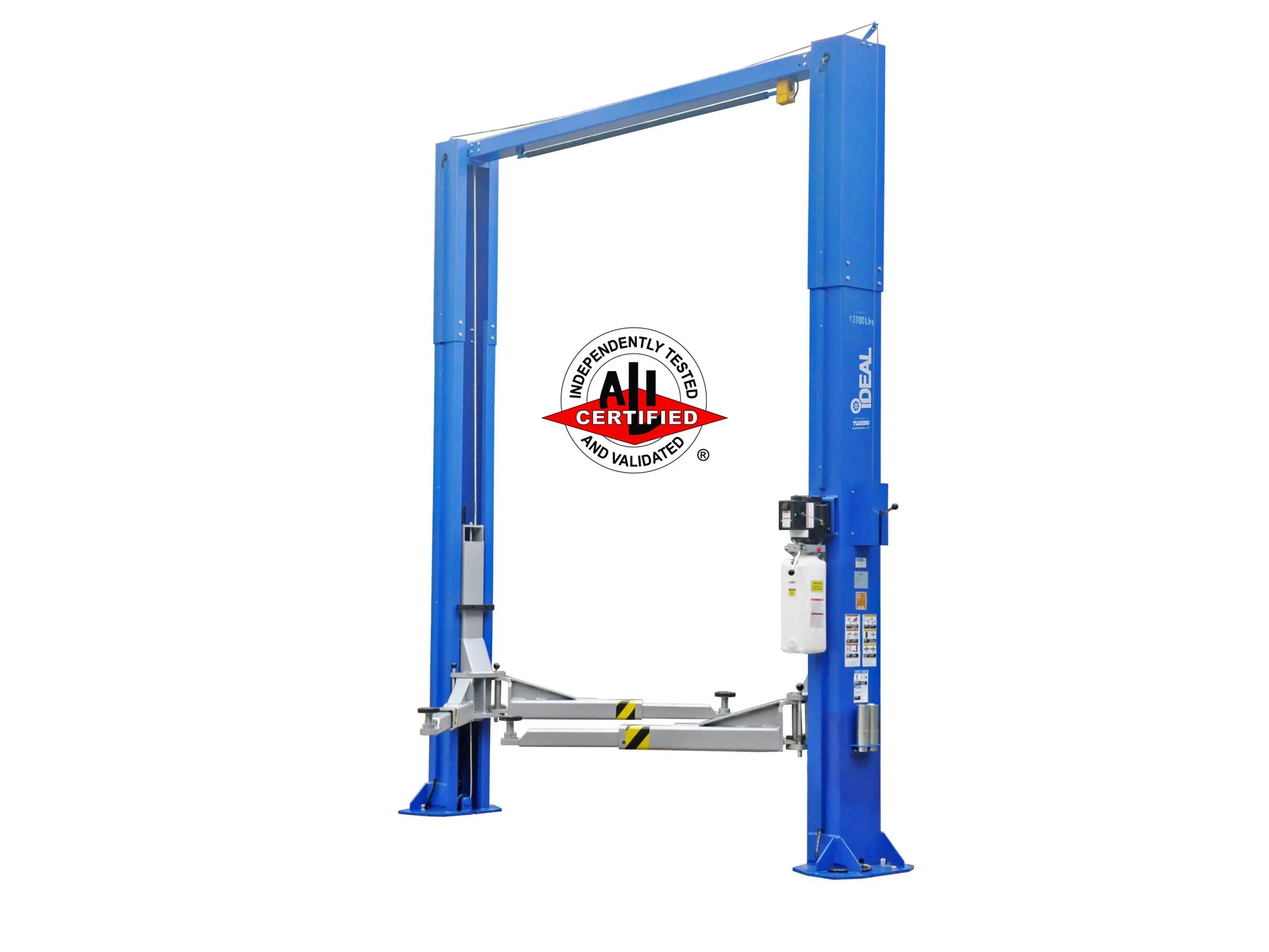

  • ALI Certified
  • 12,000 lbs capacity

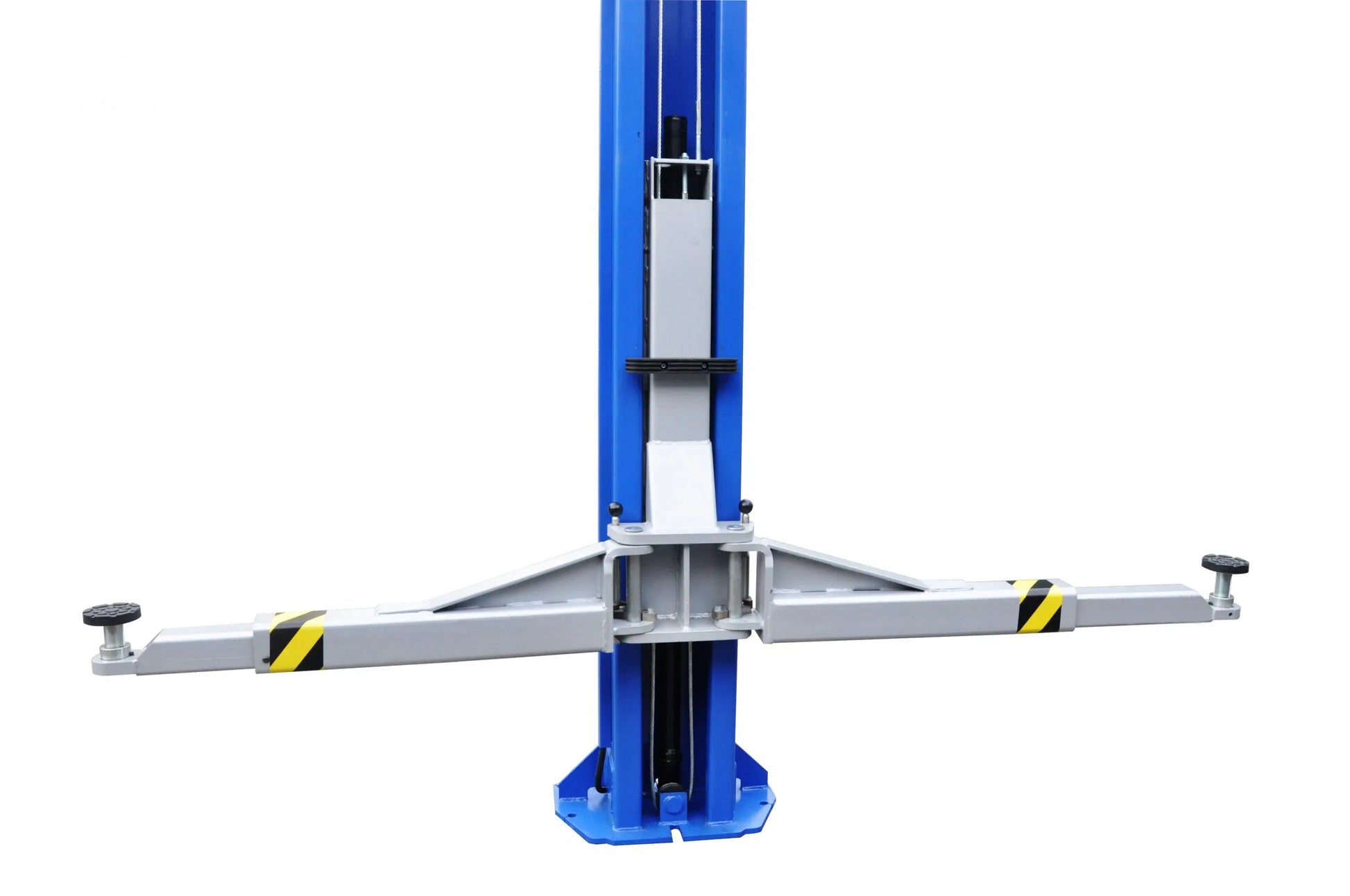

  • Symmetric Arms

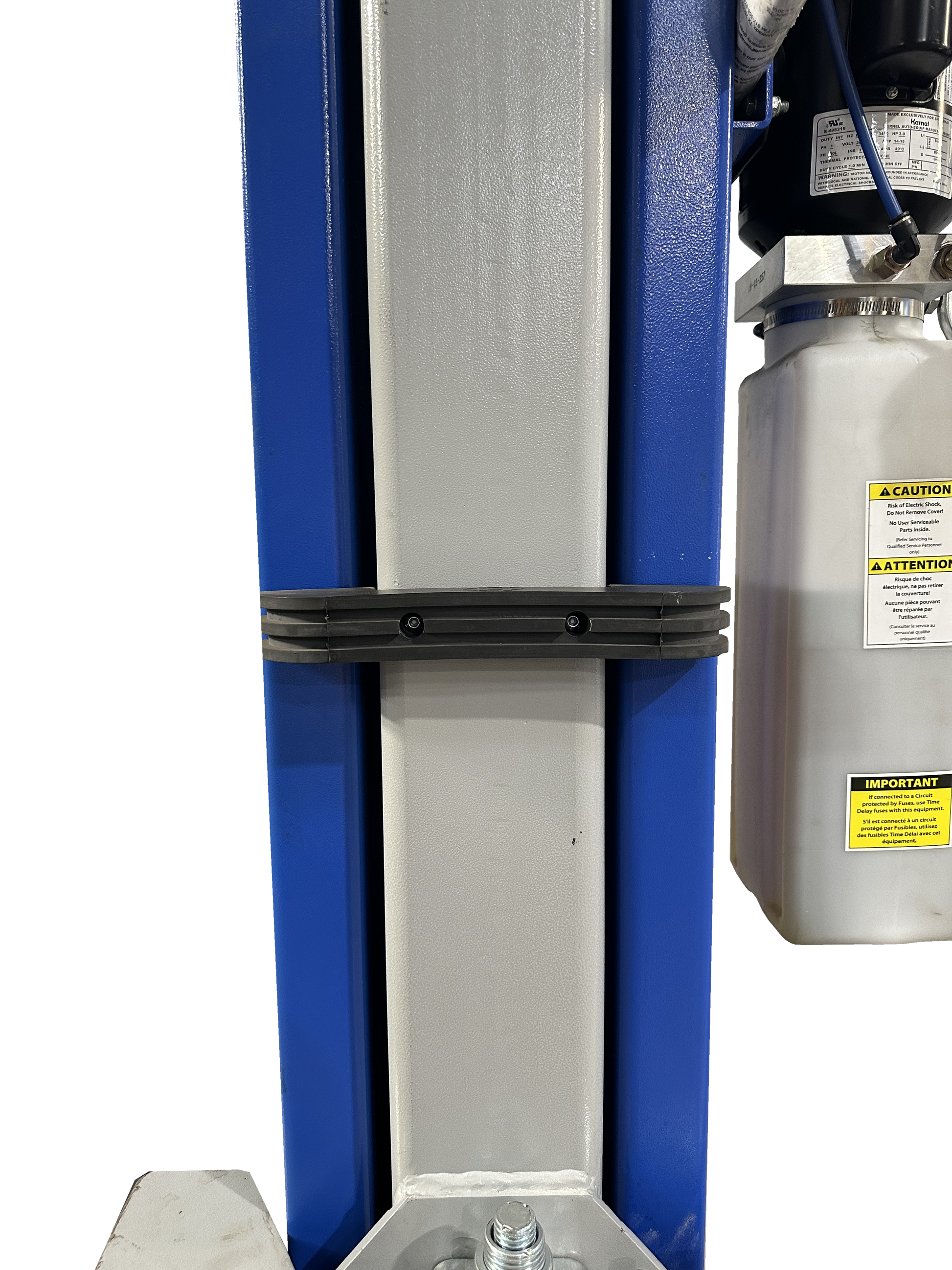

  • Rubber Door Guards

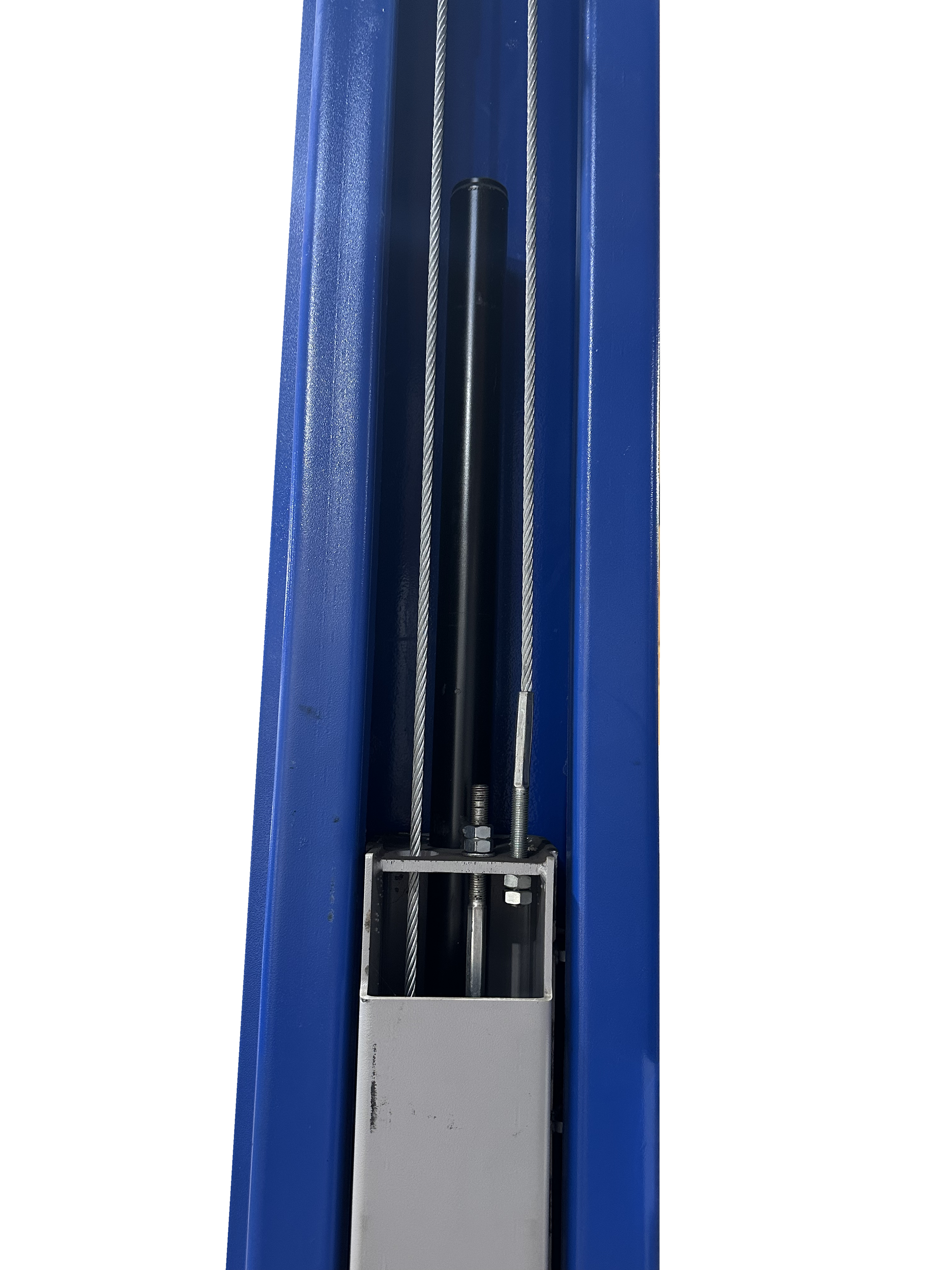

  • Direct Drive push Cylinders

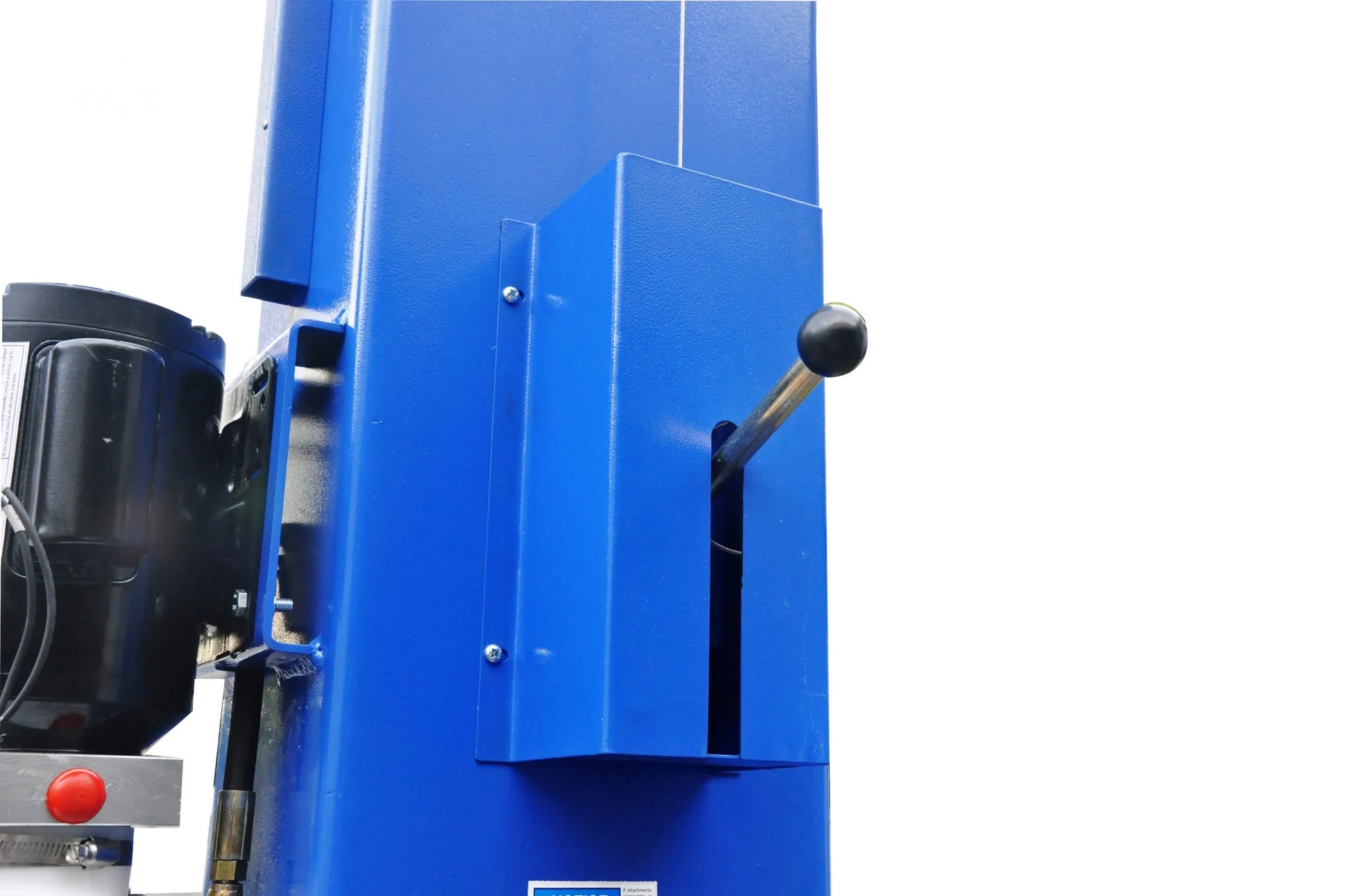

  • Single Point Lock Release

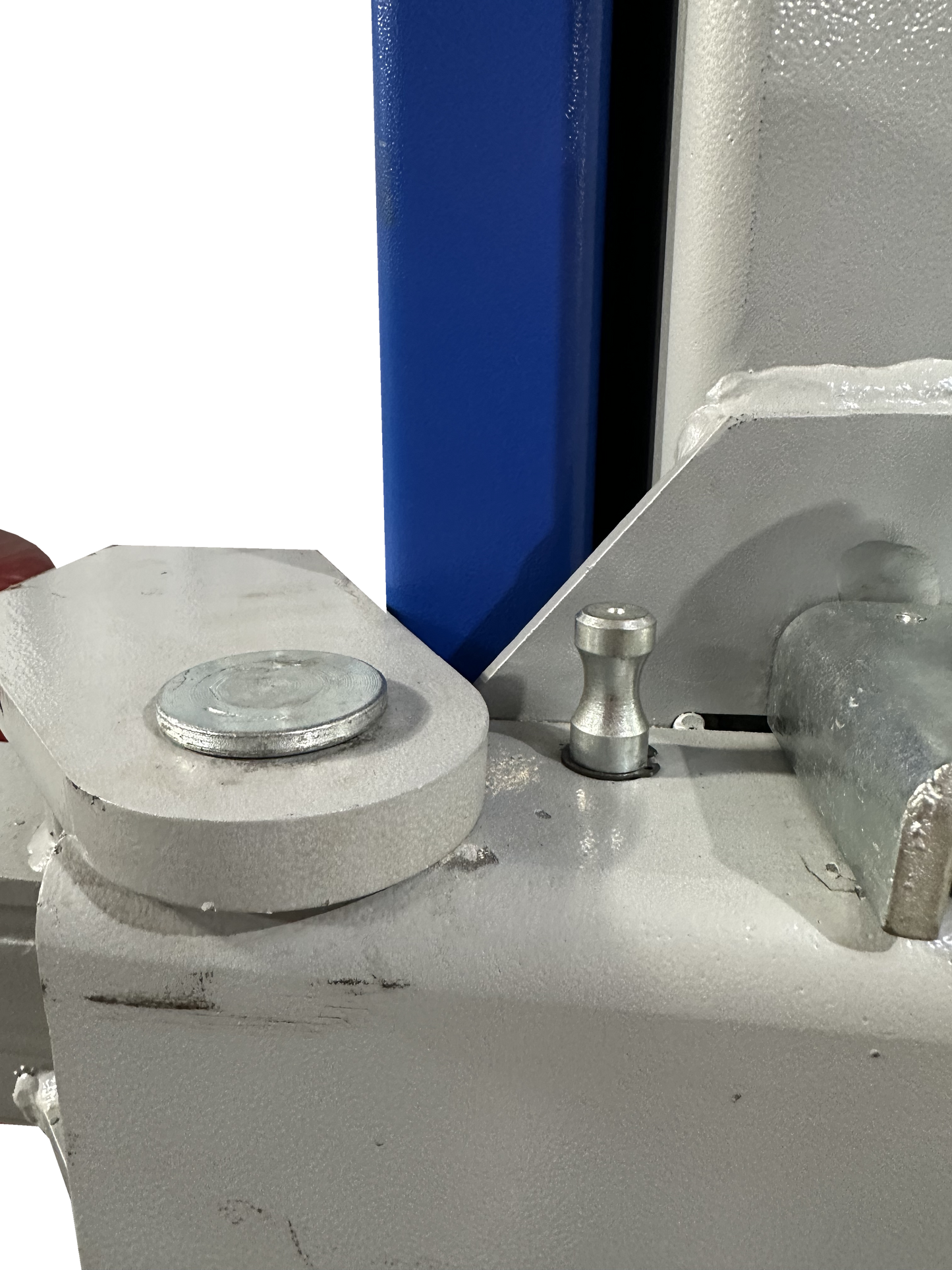

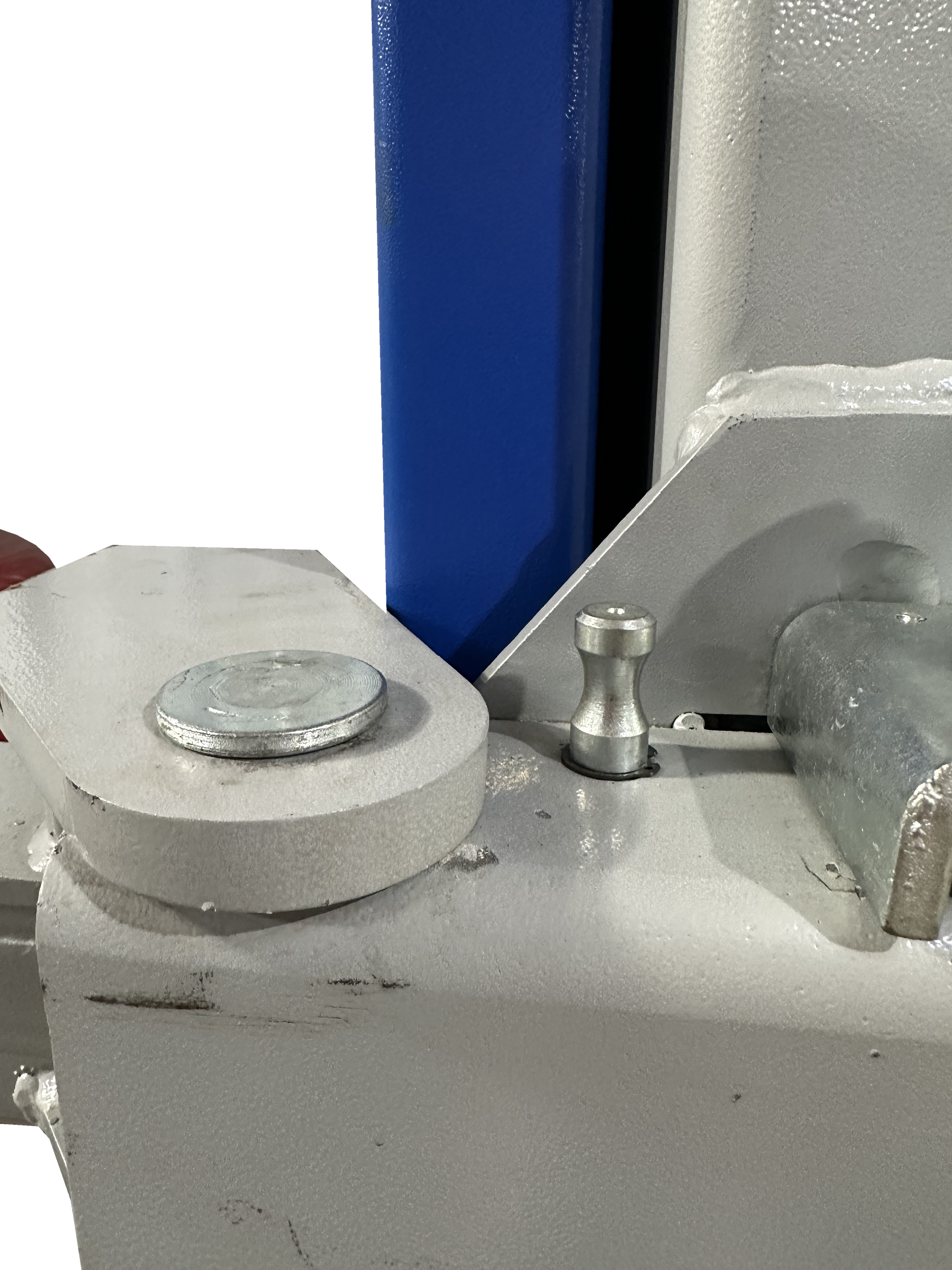

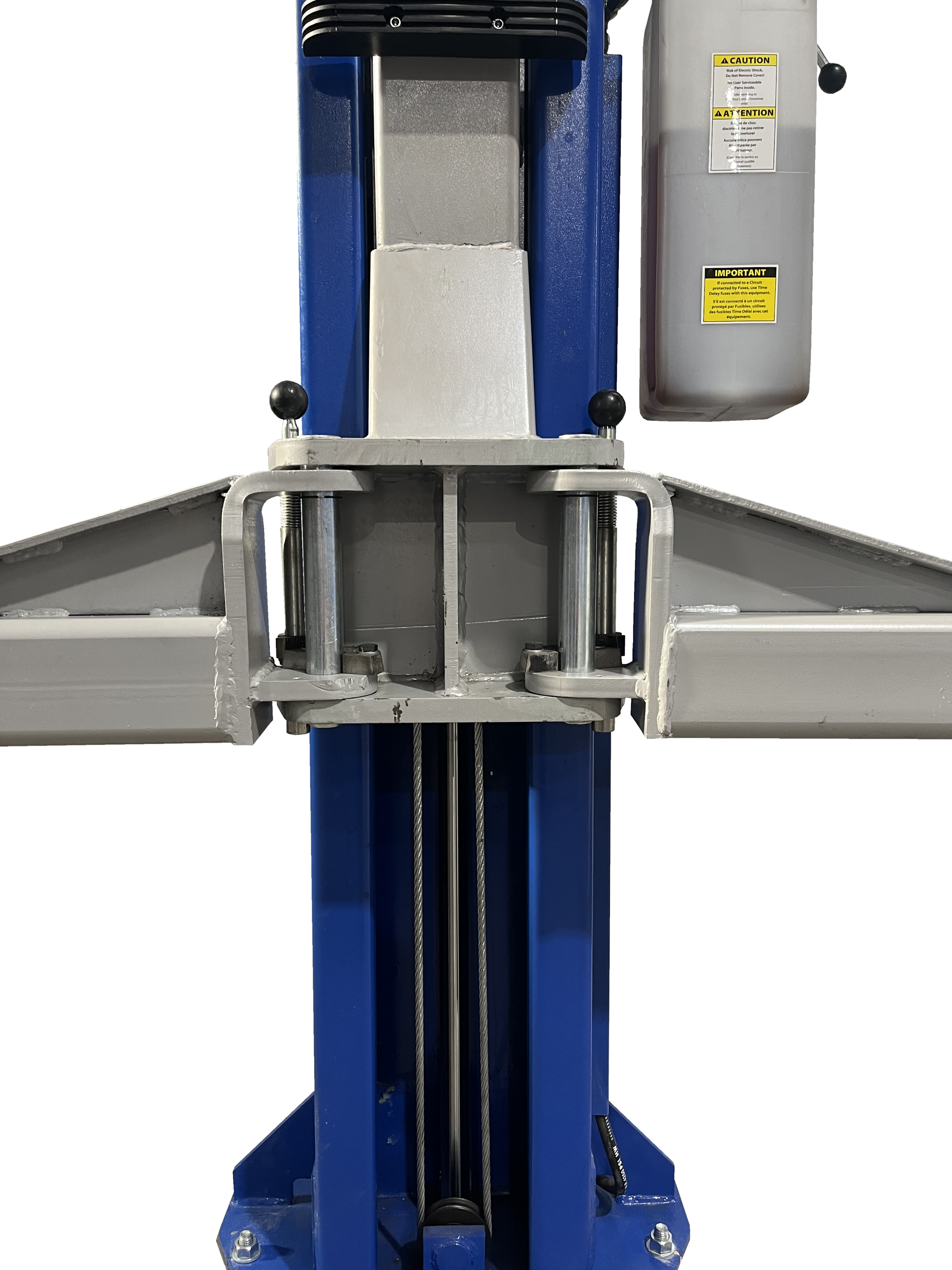

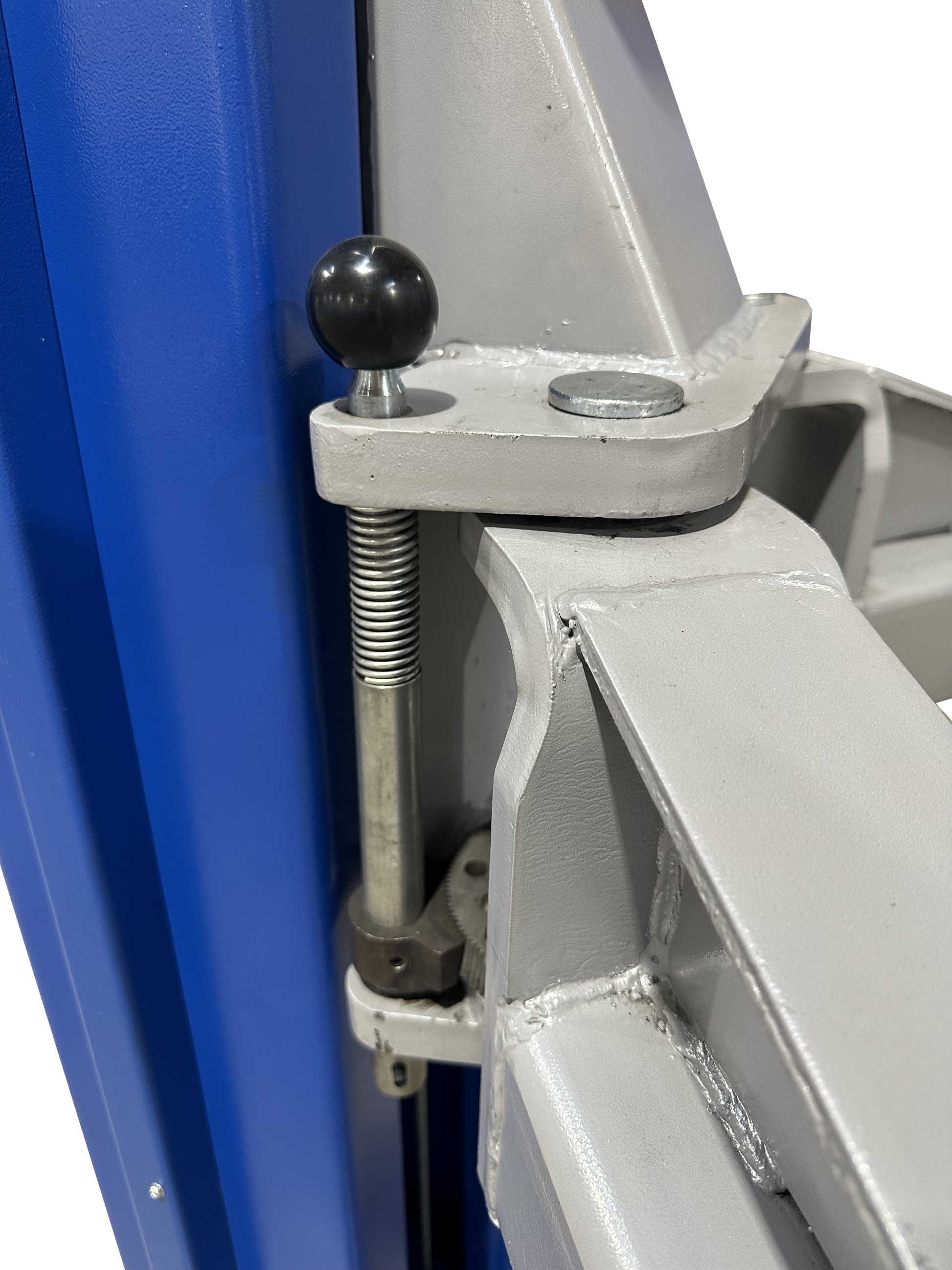

  • Heavy Duty Arm Restraint System

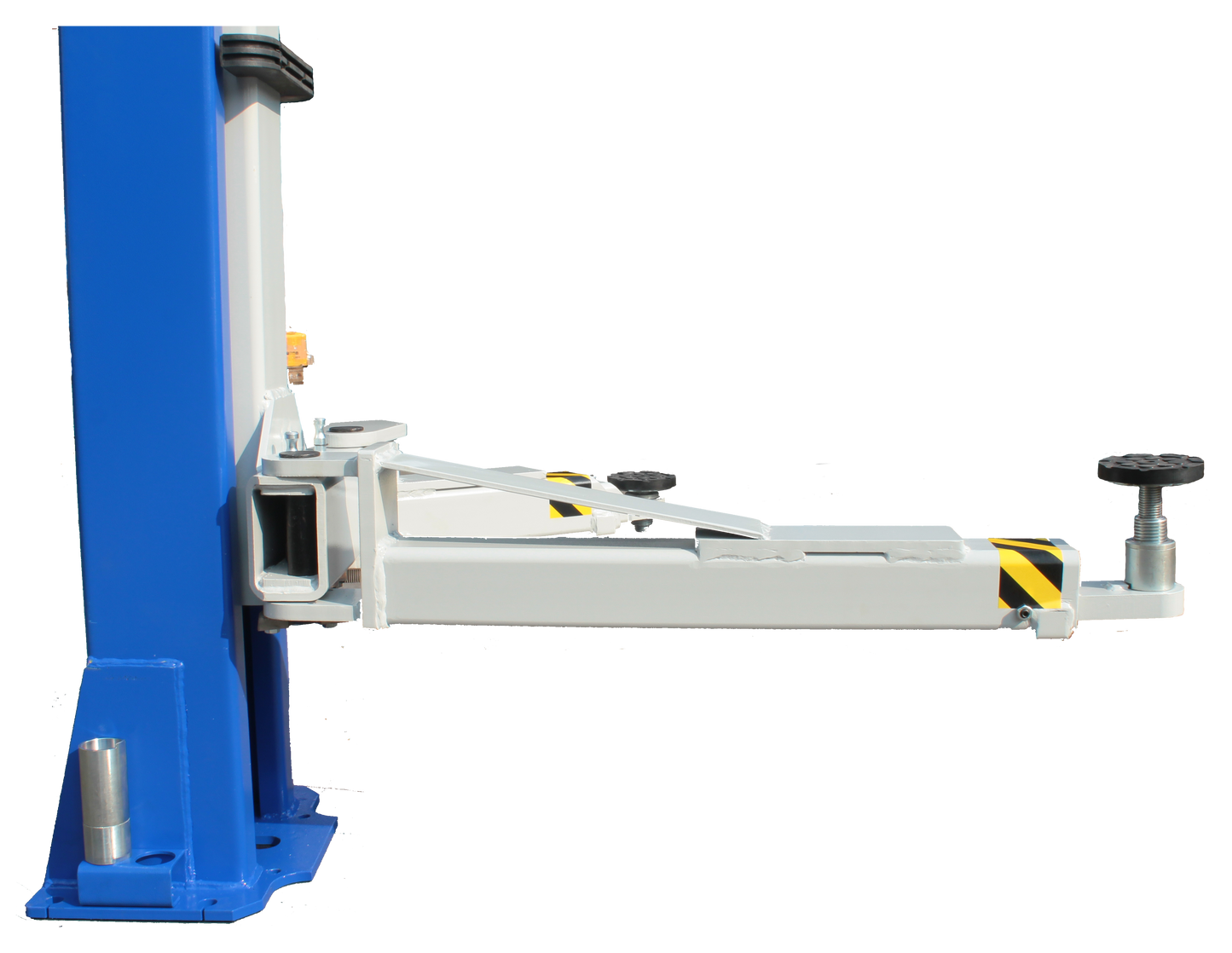

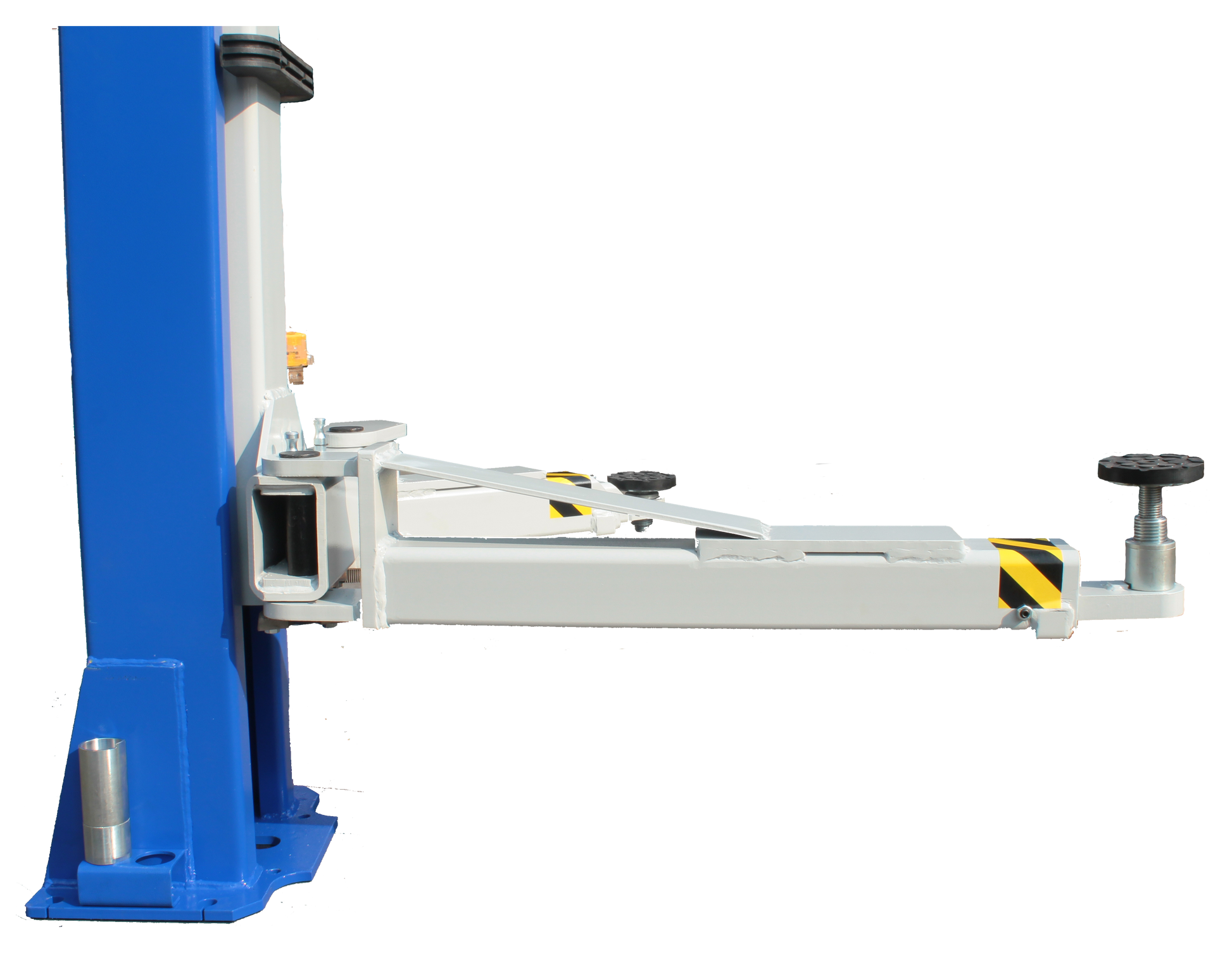

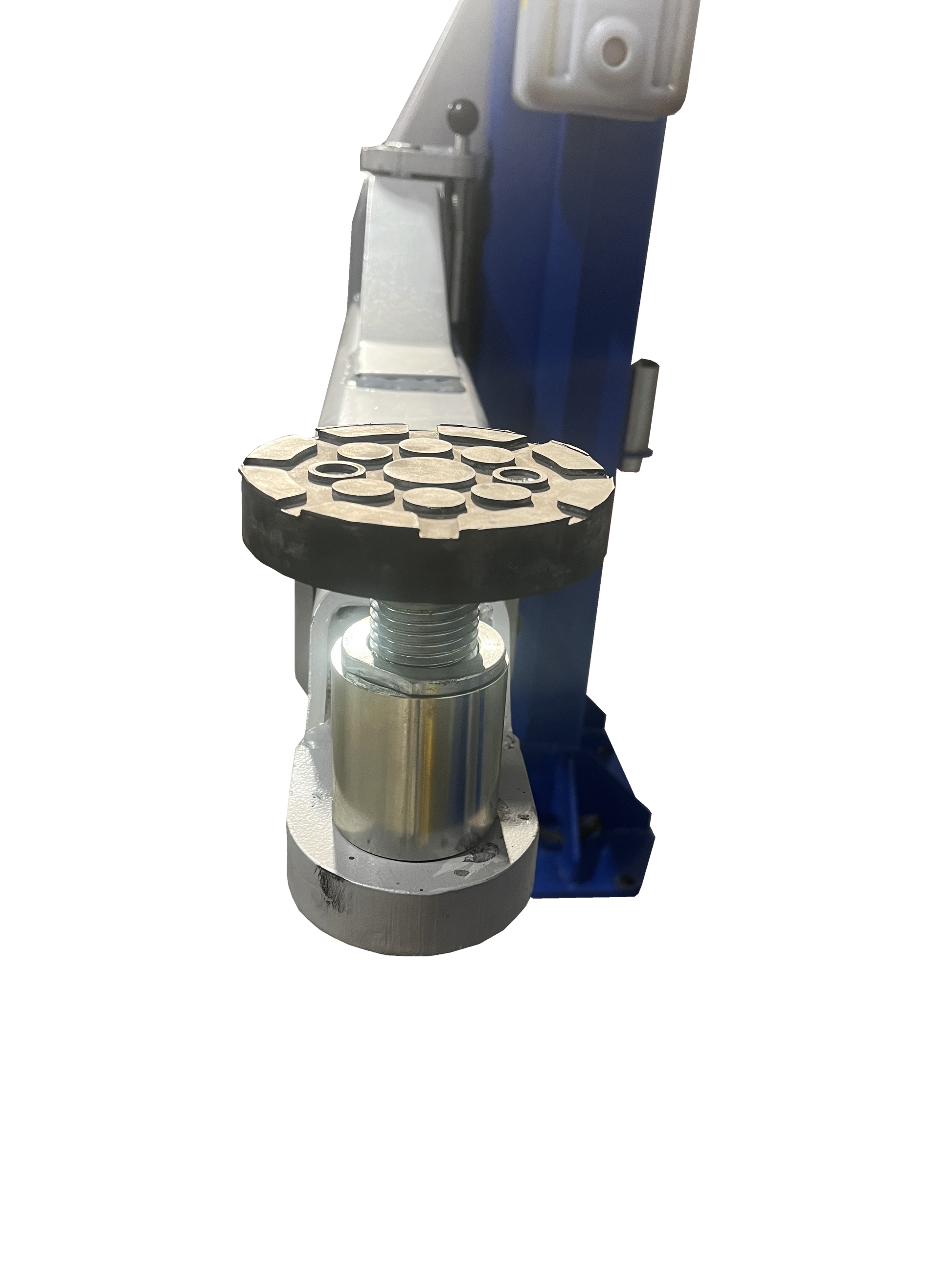

  • Spin Up Lift Pads 5” min. Pad Height

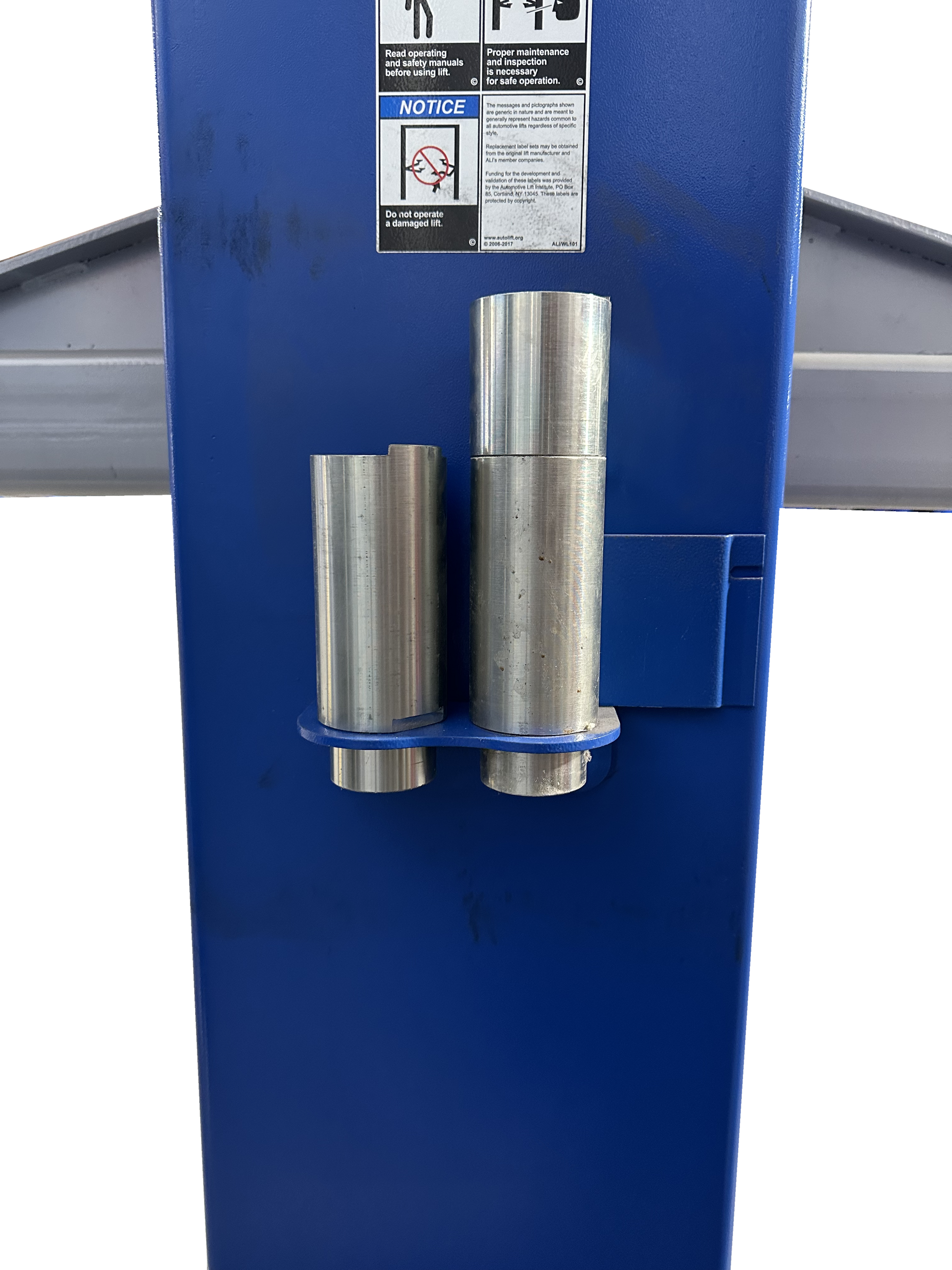

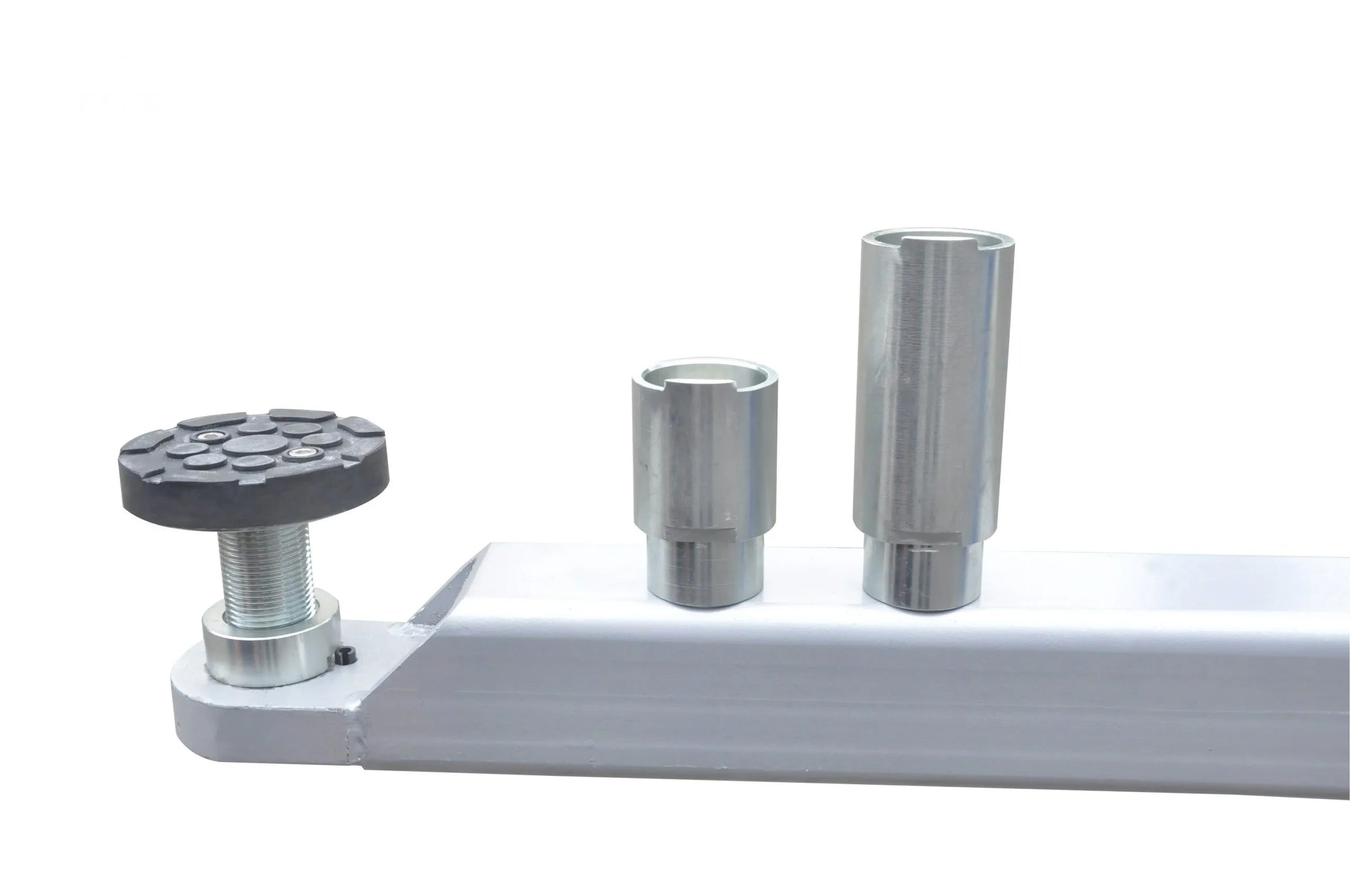

  • Stackable Adapters Included

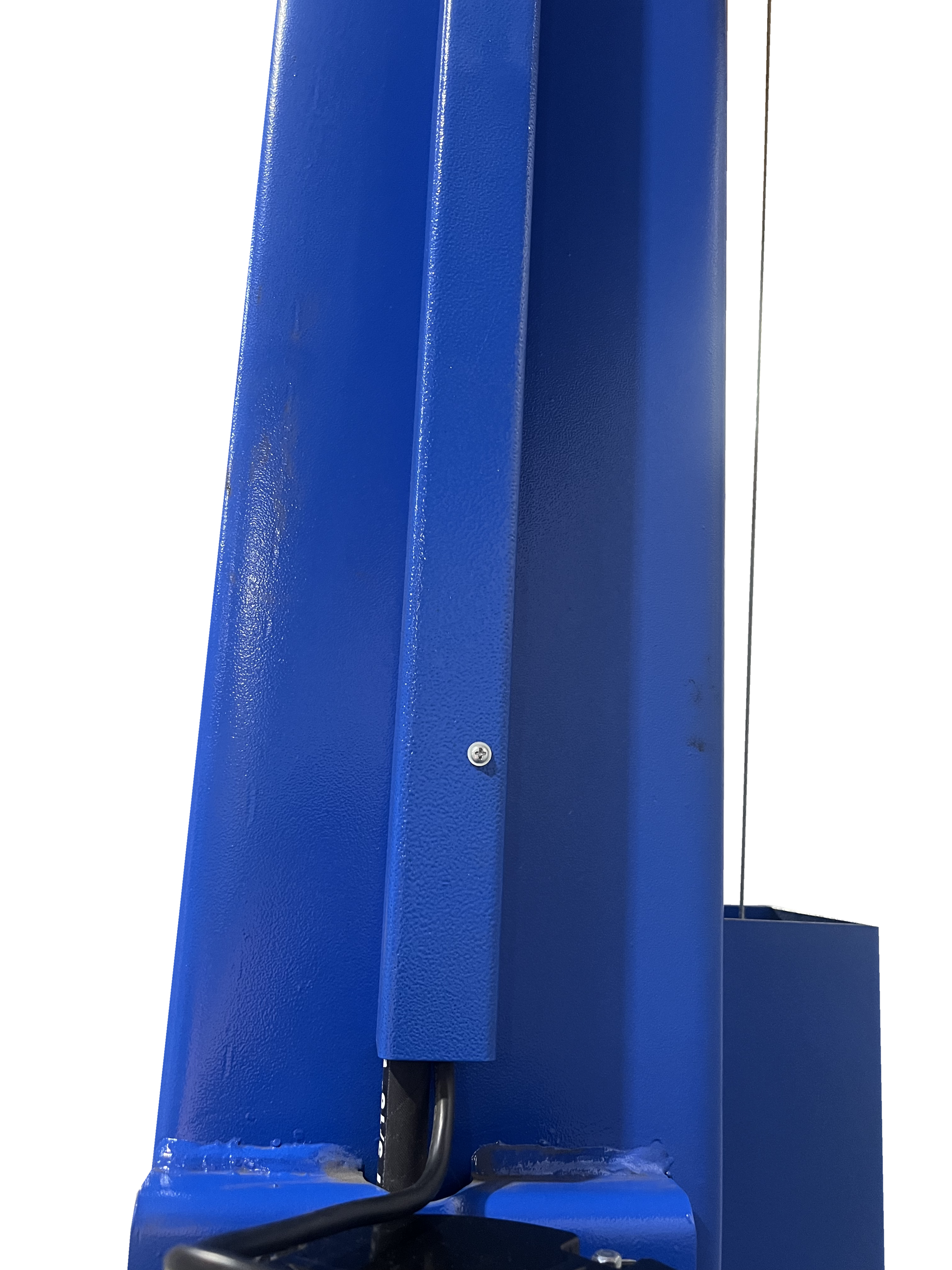

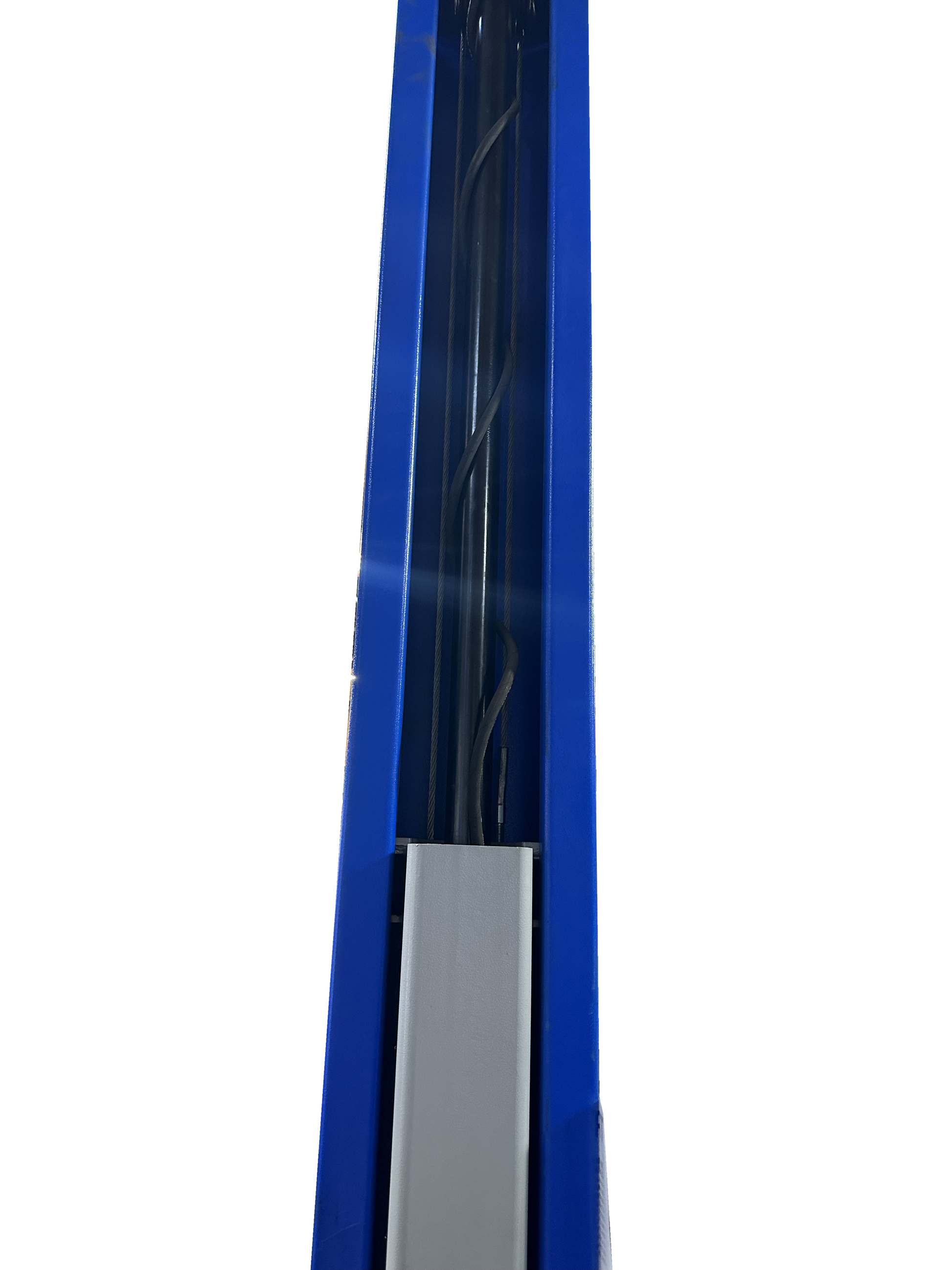

  • External hose guards

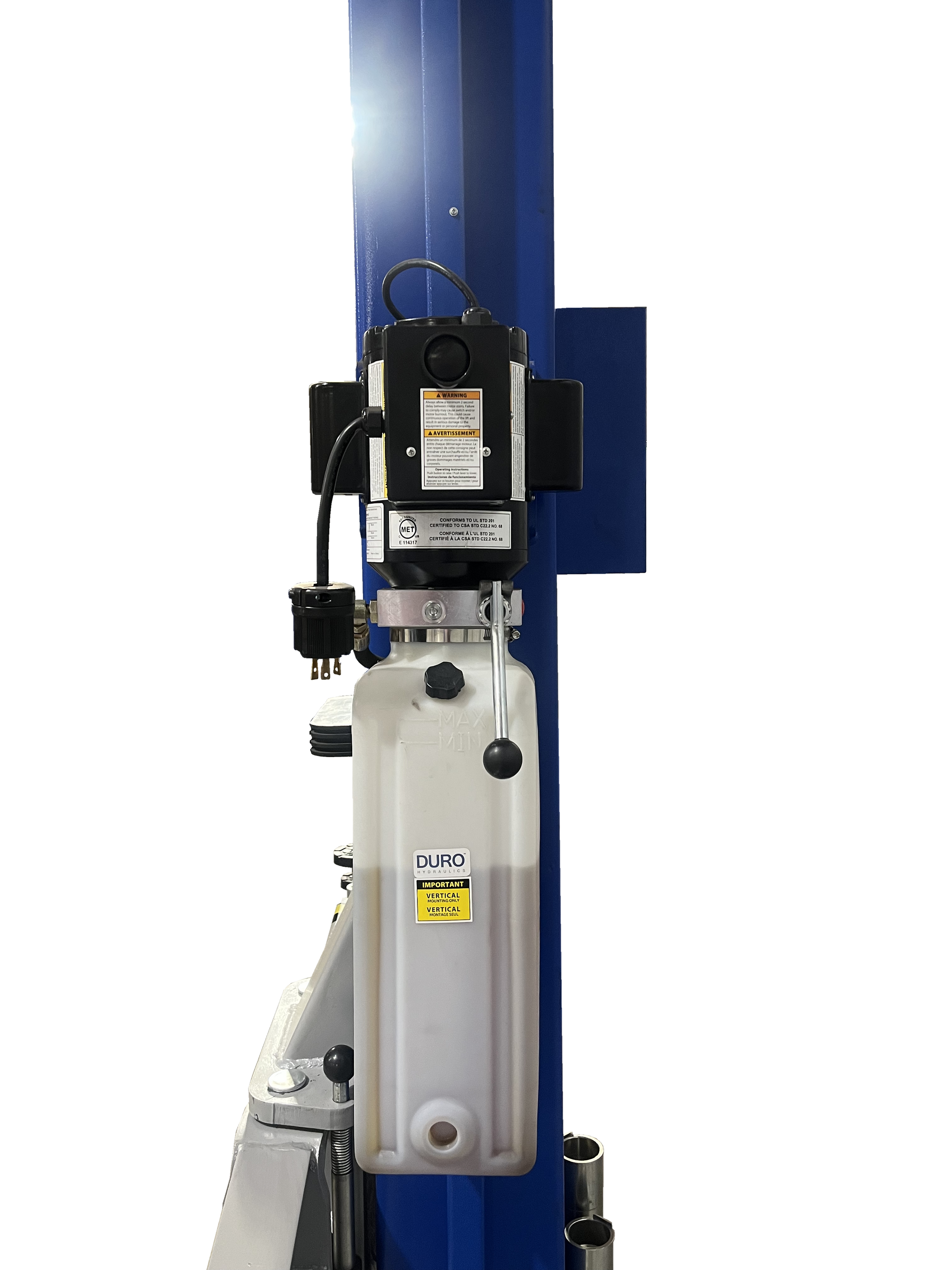

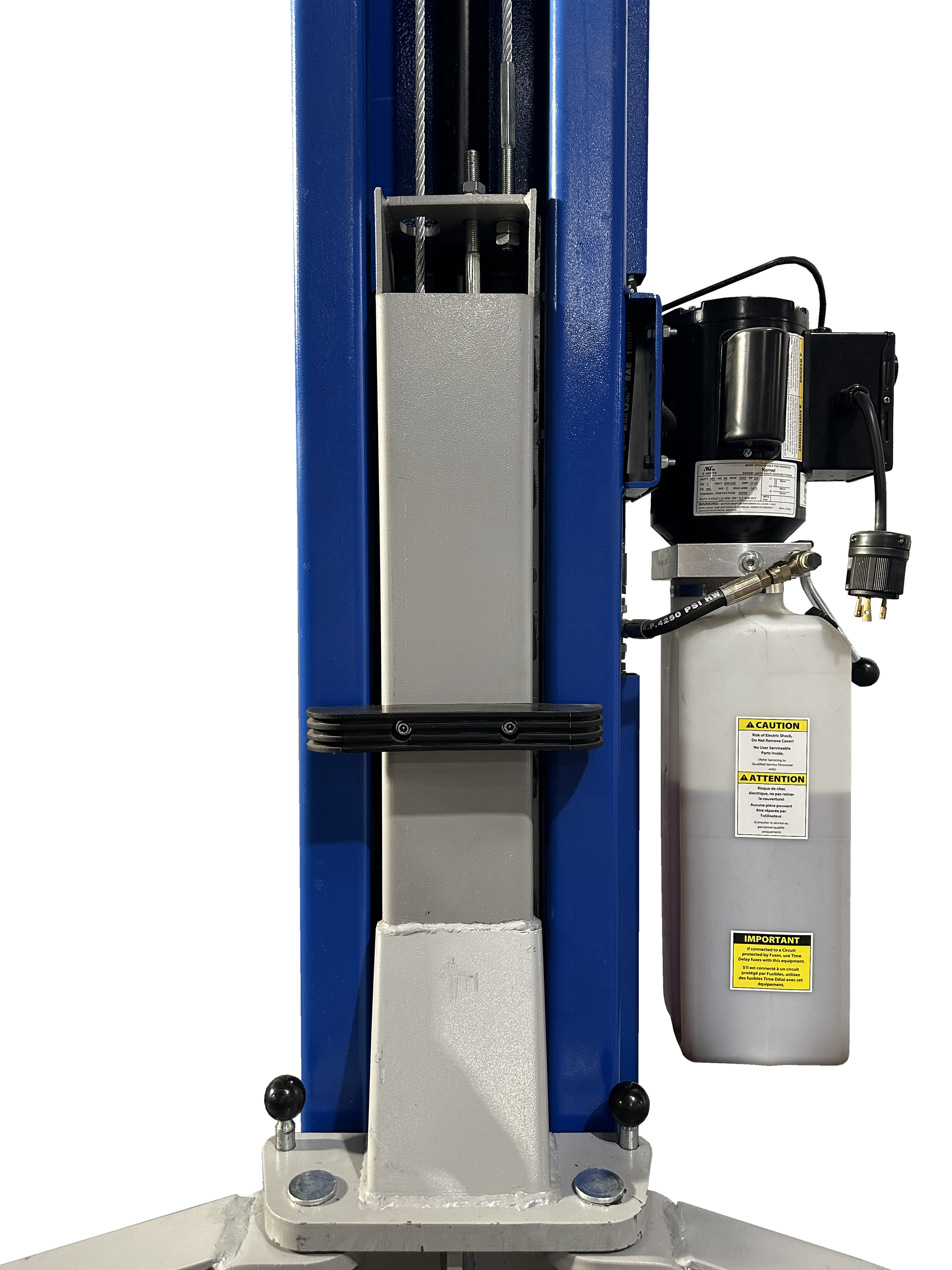

  • Duro Certifed Power Unit – MET, UL, CSA
Specifications
Capacity 12,000 lbs
Overall Height 168-1/2″
Overall Width with Power Unit 151-5/16″
Maximum Lift Height 75″
Width Between Columns 122″
Minimum Pad Height 5″
Drive-Thru Clearance 109″
Lifting Speed 50 seconds
Arm Type Symmetric
Floor Type Clear Floor
Short Arm Reach (min/max) 37-5/8″ – 57″
Long Arm Reach (min/max) Same
Maximum Load Per Arm 3,000 lbs
Shipping Weight 2,295 lbs
Power Requirements 220V – 20 AMP – 1 PH
